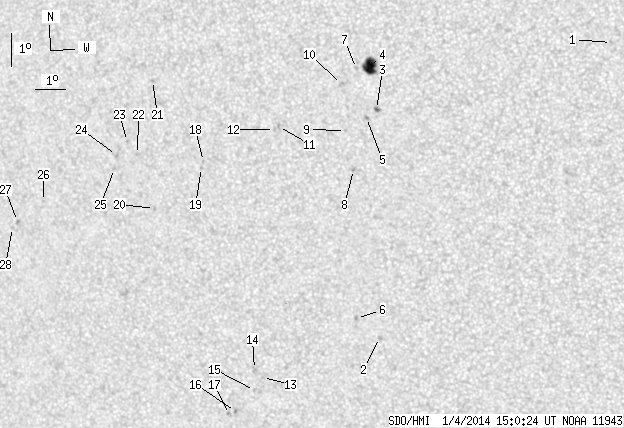

SDO HMI 2014-01-04 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.12 | 56.93 | 8.17 | 32.01 | -13.89 | 115.91 | -25.85 | 113.75 | 0.4653 | 300.4 | 138.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-04 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.38 | 126.88 | -14.88 | 116.03 | 0.2823 | 806.0 | 647.5 | |
| 0.00 | 2.04 | 0.00 | 1.14 | -19.10 | 118.56 | -23.19 | 126.46 | 0.4647 | 709.0 | 631.0 | |
| 0.76 | 2.29 | 0.41 | 1.24 | -12.23 | 119.29 | -22.47 | 112.88 | 0.4072 | 1083.8 | 873.0 | |
| 14.36 | 17.33 | 7.76 | 9.37 | -10.94 | 119.17 | -22.59 | 109.77 | 0.4024 | 1073.5 | 773.8 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -12.46 | 118.94 | -22.82 | 113.13 | 0.4136 | 845.0 | 661.1 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -18.51 | 117.87 | -23.89 | 124.63 | 0.4686 | 859.0 | 708.6 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -10.99 | 118.75 | -23.01 | 109.59 | 0.4091 | 790.0 | 518.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.00 | 118.36 | -23.40 | 116.07 | 0.4309 | 774.0 | 557.5 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -12.83 | 118.21 | -23.54 | 113.39 | 0.4262 | 639.0 | 501.9 | |
| 0.00 | 2.29 | 0.00 | 1.25 | -11.46 | 118.21 | -23.55 | 110.29 | 0.4192 | 594.0 | 561.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -12.66 | 116.00 | -25.76 | 111.42 | 0.4574 | -903.0 | -707.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -12.74 | 115.86 | -25.90 | 111.51 | 0.4599 | -680.0 | -547.9 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -20.23 | 114.32 | -27.44 | 124.35 | 0.5259 | 842.0 | 674.8 | |
| 0.00 | 2.63 | 0.00 | 1.53 | -19.97 | 114.08 | -27.68 | 123.72 | 0.5270 | 821.0 | 597.4 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -20.62 | 113.95 | -27.81 | 124.69 | 0.5331 | 700.0 | 573.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -21.25 | 113.14 | -28.62 | 125.04 | 0.5474 | 842.0 | 715.4 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -21.33 | 112.91 | -28.85 | 124.99 | 0.5508 | 685.0 | 519.8 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -13.63 | 113.33 | -28.43 | 111.72 | 0.5001 | -559.0 | -467.6 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -13.81 | 113.24 | -28.52 | 112.01 | 0.5022 | -766.0 | -606.8 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -14.99 | 111.42 | -30.34 | 113.14 | 0.5327 | -791.0 | -667.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -11.17 | 111.87 | -29.89 | 106.27 | 0.5113 | -772.0 | -587.5 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -13.35 | 111.07 | -30.69 | 109.99 | 0.5306 | -436.0 | -437.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -12.95 | 110.77 | -30.99 | 109.13 | 0.5332 | -859.0 | -722.1 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -13.36 | 110.32 | -31.44 | 109.65 | 0.5410 | -769.0 | -639.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -13.75 | 110.19 | -31.57 | 110.28 | 0.5443 | -687.0 | -545.7 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -14.65 | 107.47 | -34.29 | 110.60 | 0.5846 | -661.0 | -556.4 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -15.22 | 106.39 | -35.37 | 111.07 | 0.6008 | -807.0 | -680.3 | |
| 0.00 | 1.10 | 0.00 | 0.69 | -15.39 | 106.17 | -35.59 | 111.25 | 0.6044 | -509.0 | -383.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
