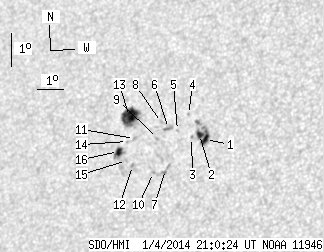

SDO HMI 2014-01-04 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.48 | 71.40 | 19.26 | 46.40 | 9.43 | 100.13 | -38.32 | 71.03 | 0.6489 | 197.4 | -107.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-04 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.25 | 18.68 | 2.68 | 11.84 | 9.20 | 102.08 | -36.37 | 70.49 | 0.6233 | -1028.1 | -624.7 | |
| 3.06 | -1.00 | 1.94 | -1.00 | 9.36 | 101.84 | -36.61 | 70.36 | 0.6271 | -785.8 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.70 | 9.28 | 101.55 | -36.90 | 70.62 | 0.6304 | -393.0 | -275.2 | |
| 0.00 | 0.93 | 0.00 | 0.60 | 9.99 | 101.35 | -37.10 | 69.65 | 0.6359 | -582.0 | -525.9 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 9.52 | 100.99 | -37.45 | 70.53 | 0.6385 | -503.0 | -417.5 | |
| 0.00 | 3.23 | 0.00 | 2.08 | 9.59 | 100.64 | -37.80 | 70.58 | 0.6432 | -582.0 | -297.0 | |
| 0.00 | 4.16 | 0.00 | 2.67 | 8.35 | 100.68 | -37.77 | 72.42 | 0.6380 | -455.0 | -576.9 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 9.78 | 100.35 | -38.09 | 70.42 | 0.6476 | 243.0 | 194.4 | |
| 0.00 | 1.44 | 0.00 | 0.94 | 9.30 | 100.26 | -38.18 | 71.18 | 0.6469 | 265.0 | 218.3 | |
| 0.00 | 1.10 | 0.00 | 0.71 | 8.28 | 100.23 | -38.21 | 72.72 | 0.6434 | -382.0 | -240.5 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 9.34 | 99.37 | -39.07 | 71.51 | 0.6581 | 587.0 | 486.3 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 8.52 | 99.40 | -39.04 | 72.69 | 0.6548 | -530.0 | -345.4 | |
| 18.43 | 24.12 | 12.17 | 15.93 | 10.02 | 99.09 | -39.36 | 70.65 | 0.6642 | 817.4 | 534.6 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 9.26 | 99.11 | -39.33 | 71.73 | 0.6611 | 677.0 | 579.7 | |
| 0.00 | 1.70 | 0.00 | 1.12 | 8.69 | 99.15 | -39.29 | 72.56 | 0.6586 | 177.0 | 164.9 | |
| 3.74 | 8.15 | 2.47 | 5.38 | 8.97 | 98.80 | -39.64 | 72.28 | 0.6639 | 802.0 | 511.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
