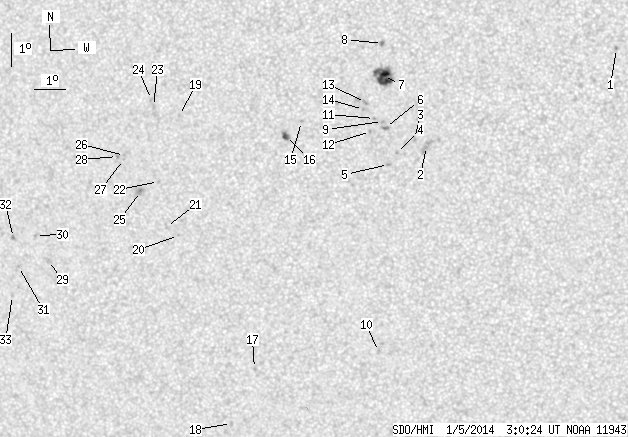

SDO HMI 2014-01-05 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.77 | 82.54 | 9.77 | 43.91 | -12.93 | 116.43 | -18.72 | 118.36 | 0.3560 | 165.9 | 112.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.56 | -10.13 | 126.43 | -8.72 | 127.94 | 0.1901 | 964.0 | 831.3 | |
| 0.00 | 8.16 | 0.00 | 4.23 | -12.97 | 120.47 | -14.68 | 124.00 | 0.2993 | 836.0 | 749.1 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -12.72 | 120.11 | -15.04 | 122.69 | 0.3022 | 733.0 | 586.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.13 | 119.52 | -15.63 | 122.89 | 0.3139 | 720.0 | 606.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.49 | 119.24 | -15.91 | 123.41 | 0.3208 | 875.0 | 726.2 | |
| 0.00 | 2.63 | 0.00 | 1.37 | -12.38 | 119.22 | -15.93 | 120.33 | 0.3120 | 1026.0 | 823.5 | |
| 16.65 | 25.66 | 8.64 | 13.32 | -10.86 | 119.25 | -15.90 | 115.89 | 0.3004 | 1128.5 | 755.0 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -9.88 | 119.27 | -15.88 | 112.85 | 0.2939 | -971.0 | -794.3 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -12.20 | 119.14 | -16.01 | 119.69 | 0.3118 | 932.0 | 860.2 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -19.13 | 118.43 | -16.72 | 135.02 | 0.3863 | 629.0 | 506.9 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -12.10 | 118.89 | -16.26 | 119.07 | 0.3146 | 931.0 | 705.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -12.49 | 118.74 | -16.41 | 119.94 | 0.3197 | 741.0 | 614.6 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -11.62 | 118.64 | -16.51 | 117.35 | 0.3148 | 1043.0 | 852.1 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -11.83 | 118.56 | -16.59 | 117.84 | 0.3174 | 837.0 | 711.6 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -12.15 | 116.58 | -18.57 | 116.28 | 0.3487 | -827.0 | -607.3 | |
| 2.12 | 3.99 | 1.13 | 2.12 | -12.59 | 116.04 | -19.11 | 116.80 | 0.3596 | -1073.0 | -845.0 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -19.57 | 114.28 | -20.87 | 129.91 | 0.4395 | 638.0 | 481.3 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -21.25 | 113.25 | -21.90 | 131.64 | 0.4671 | 845.0 | 553.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -11.89 | 112.67 | -22.48 | 111.92 | 0.4050 | -796.0 | -617.6 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -15.47 | 112.27 | -22.88 | 119.53 | 0.4325 | -790.0 | -607.7 | |
| 0.00 | 2.21 | 0.00 | 1.21 | -15.19 | 111.90 | -23.25 | 118.60 | 0.4357 | -653.0 | -546.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -13.84 | 111.79 | -23.36 | 115.61 | 0.4287 | -735.0 | -586.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -11.60 | 111.85 | -23.30 | 110.63 | 0.4158 | -793.0 | -677.1 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -11.39 | 111.80 | -23.35 | 110.12 | 0.4155 | -872.0 | -659.9 | |
| 0.00 | 3.82 | 0.00 | 2.11 | -14.12 | 111.16 | -23.99 | 115.69 | 0.4393 | -1000.0 | -787.9 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -13.03 | 110.75 | -24.40 | 113.03 | 0.4392 | -727.0 | -636.3 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -13.15 | 110.70 | -24.44 | 113.25 | 0.4405 | -822.0 | -640.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -13.06 | 110.51 | -24.63 | 112.91 | 0.4427 | -838.0 | -735.4 | |
| 0.00 | 3.82 | 0.00 | 2.18 | -16.11 | 107.78 | -27.37 | 117.01 | 0.4978 | -754.0 | -537.0 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -15.35 | 107.44 | -27.71 | 115.33 | 0.4981 | -746.0 | -587.1 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -16.26 | 106.71 | -28.44 | 116.53 | 0.5130 | -860.0 | -748.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -15.39 | 106.67 | -28.47 | 114.89 | 0.5088 | -712.0 | -671.3 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -17.13 | 106.36 | -28.79 | 117.84 | 0.5226 | -629.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
