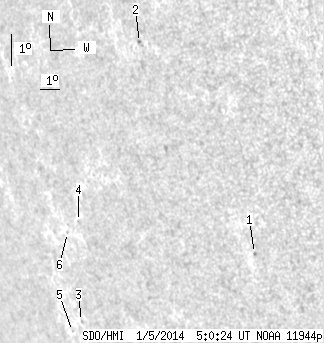

SDO HMI 2014-01-05 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.00 | 0.00 | 4.68 | -18.02 | 76.83 | -57.23 | 109.13 | 0.8464 | 216.0 | 160.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.82 | -19.54 | 83.56 | -50.50 | 112.23 | 0.7879 | 648.0 | 558.9 | |
| 0.00 | 1.27 | 0.00 | 1.07 | -12.94 | 80.26 | -53.80 | 103.47 | 0.8109 | -613.0 | -527.2 | |
| 0.00 | 0.59 | 0.00 | 0.63 | -21.13 | 72.91 | -61.14 | 112.14 | 0.8839 | 472.0 | 458.0 | |
| 0.00 | 0.93 | 0.00 | 0.92 | -18.11 | 74.63 | -59.43 | 108.94 | 0.8672 | 266.0 | 284.5 | |
| 0.00 | 0.51 | 0.00 | 0.55 | -21.40 | 72.11 | -61.95 | 112.33 | 0.8902 | 315.0 | 282.2 | |
| 0.00 | 0.68 | 0.00 | 0.69 | -18.41 | 73.78 | -60.28 | 109.17 | 0.8744 | 208.0 | 224.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
