SDO HMI 2014-01-05 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.65 | 221.73 | 62.27 | 134.47 | 9.05 | 99.90 | -33.07 | 68.89 | 0.5796 | 106.3 | 104.9 | |
|
previous
or next observation for the same group /

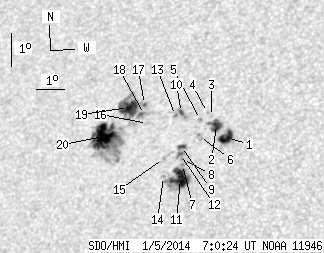

back to the solar disc SDO HMI 2014-01-05 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.54 | 15.89 | 6.19 | 9.34 | 8.93 | 102.81 | -30.16 | 67.33 | 0.5399 | -1038.1 | -467.4 | |
| 7.22 | 12.49 | 4.27 | 7.38 | 9.30 | 102.43 | -30.54 | 66.94 | 0.5471 | -873.7 | -609.1 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 9.58 | 102.23 | -30.74 | 66.60 | 0.5513 | -560.0 | -444.9 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 9.71 | 102.08 | -30.89 | 66.49 | 0.5540 | -671.0 | -505.3 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 9.51 | 101.85 | -31.11 | 66.98 | 0.5559 | -511.0 | -359.1 | |
| 0.00 | 3.06 | 0.00 | 1.82 | 8.99 | 101.87 | -31.10 | 67.84 | 0.5530 | -556.0 | -522.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 8.17 | 101.35 | -31.62 | 69.56 | 0.5560 | -911.0 | -766.1 | |
| 0.00 | 1.10 | 0.00 | 0.66 | 8.32 | 101.34 | -31.63 | 69.31 | 0.5569 | -888.0 | -763.2 | |
| 1.87 | 3.74 | 1.12 | 2.23 | 8.71 | 101.26 | -31.70 | 68.69 | 0.5598 | -770.9 | -600.5 | |
| 1.27 | 4.08 | 0.76 | 2.45 | 9.74 | 101.16 | -31.81 | 67.03 | 0.5664 | -633.5 | -16.7 | |
| 20.31 | 33.83 | 12.07 | 20.11 | 7.75 | 101.32 | -31.65 | 70.30 | 0.5545 | -1027.1 | -536.0 | |
| 0.00 | 3.57 | 0.00 | 2.13 | 8.47 | 101.25 | -31.72 | 69.10 | 0.5588 | -720.0 | -504.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.66 | 100.96 | -32.01 | 67.30 | 0.5686 | -620.0 | -392.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 7.83 | 100.71 | -32.26 | 70.50 | 0.5631 | -607.0 | -441.6 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 8.37 | 100.66 | -32.31 | 69.61 | 0.5663 | -436.0 | -286.2 | |
| 0.00 | 2.38 | 0.00 | 1.45 | 9.45 | 99.99 | -32.98 | 68.22 | 0.5805 | 225.0 | 187.6 | |
| 0.76 | 2.89 | 0.47 | 1.76 | 10.03 | 99.81 | -33.15 | 67.39 | 0.5856 | 874.9 | 722.4 | |
| 0.00 | 7.39 | 0.00 | 4.50 | 9.73 | 99.85 | -33.12 | 67.86 | 0.5837 | 711.0 | 662.7 | |
| 20.14 | 33.32 | 12.36 | 20.45 | 9.96 | 99.25 | -33.72 | 67.83 | 0.5927 | 892.8 | 453.2 | |
| 40.54 | 90.01 | 25.03 | 55.42 | 9.11 | 98.44 | -34.53 | 69.62 | 0.5993 | 1003.8 | 421.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
