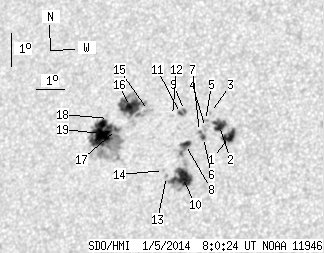

SDO HMI 2014-01-05 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.01 | 220.20 | 62.66 | 132.69 | 9.05 | 99.91 | -32.52 | 68.57 | 0.5722 | 115.2 | 109.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.09 | 24.90 | 5.31 | 14.58 | 8.91 | 102.89 | -29.54 | 66.95 | 0.5314 | -1057.4 | -649.2 | |
| 8.24 | -1.00 | 4.84 | -1.00 | 9.25 | 102.51 | -29.91 | 66.61 | 0.5384 | -866.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 9.66 | 102.16 | -30.26 | 66.15 | 0.5453 | -680.0 | -543.2 | |
| 0.00 | 3.91 | 0.00 | 2.31 | 9.21 | 102.03 | -30.39 | 67.01 | 0.5446 | 159.0 | -206.6 | |
| 0.00 | 1.87 | 0.00 | 1.10 | 9.42 | 102.01 | -30.41 | 66.66 | 0.5461 | -542.0 | -385.5 | |
| 1.27 | 4.33 | 0.75 | 2.56 | 8.91 | 101.99 | -30.43 | 67.55 | 0.5436 | -862.1 | -535.1 | |
| 0.34 | -6.00 | 0.20 | -6.00 | 9.09 | 101.83 | -30.59 | 67.34 | 0.5467 | -562.8 | 999999 | |
| 3.99 | 10.11 | 2.37 | 5.99 | 8.72 | 101.38 | -31.04 | 68.27 | 0.5509 | -607.0 | -489.6 | |
| 0.76 | 4.50 | 0.46 | 2.69 | 9.75 | 101.25 | -31.18 | 66.61 | 0.5581 | -601.2 | -356.8 | |
| 19.80 | 34.93 | 11.69 | 20.63 | 7.72 | 101.36 | -31.06 | 69.99 | 0.5463 | -1026.0 | -602.5 | |
| 1.19 | -9.00 | 0.71 | -9.00 | 9.66 | 101.12 | -31.31 | 66.84 | 0.5594 | -369.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 9.61 | 100.84 | -31.58 | 67.10 | 0.5628 | 191.0 | 117.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 7.77 | 100.80 | -31.62 | 70.23 | 0.5542 | -573.0 | -480.2 | |
| 0.00 | 0.93 | 0.00 | 0.56 | 7.96 | 100.68 | -31.74 | 69.99 | 0.5567 | -498.0 | -326.0 | |
| 0.00 | 3.23 | 0.00 | 1.95 | 9.79 | 99.97 | -32.45 | 67.35 | 0.5752 | 829.0 | 687.1 | |
| 20.57 | 37.74 | 12.54 | 22.99 | 9.94 | 99.28 | -33.14 | 67.53 | 0.5851 | 907.5 | 569.4 | |
| 1.36 | 88.48 | 0.83 | 54.16 | 9.25 | 98.89 | -33.54 | 68.85 | 0.5869 | 843.1 | 435.6 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 9.60 | 98.56 | -33.86 | 68.48 | 0.5928 | 136.0 | 245.8 | |
| 37.40 | -17.00 | 22.96 | -17.00 | 9.15 | 98.36 | -34.07 | 69.31 | 0.5934 | 1000.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
