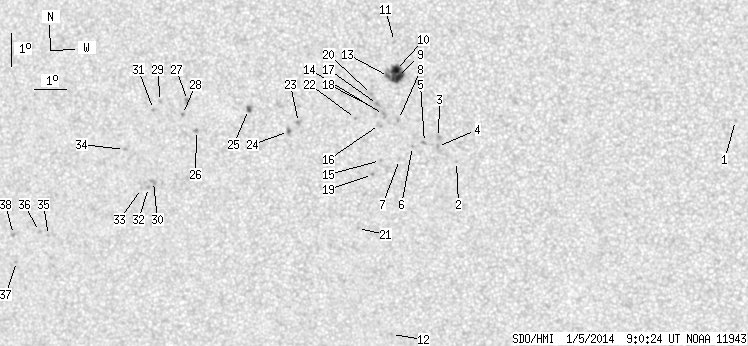

SDO HMI 2014-01-05 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.67 | 80.74 | 9.06 | 42.08 | -12.38 | 116.81 | -15.06 | 122.47 | 0.3003 | 291.2 | 128.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.37 | 129.64 | -2.24 | 166.08 | 0.1594 | 820.0 | 631.1 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.53 | 121.11 | -10.77 | 133.91 | 0.2533 | 857.0 | 707.3 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -12.80 | 120.59 | -11.29 | 130.41 | 0.2519 | 948.0 | 787.5 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -13.07 | 120.54 | -11.33 | 131.12 | 0.2553 | 1093.0 | 913.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -12.95 | 120.15 | -11.73 | 129.80 | 0.2591 | 1000.0 | 839.6 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.06 | 119.77 | -12.11 | 129.29 | 0.2652 | 794.0 | 589.0 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -13.44 | 119.35 | -12.53 | 129.48 | 0.2746 | 811.0 | 497.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -12.25 | 119.38 | -12.50 | 125.93 | 0.2624 | 846.0 | 674.9 | |
| 7.65 | 23.71 | 3.91 | 12.13 | -11.00 | 119.41 | -12.47 | 121.84 | 0.2507 | 1209.8 | 722.2 | |
| 6.46 | -9.00 | 3.30 | -9.00 | -10.79 | 119.36 | -12.52 | 121.01 | 0.2497 | 1280.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.93 | 119.36 | -12.52 | 117.92 | 0.2427 | -942.0 | -675.7 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -18.73 | 118.74 | -13.14 | 140.79 | 0.3420 | 980.0 | 778.4 | |
| 1.61 | -9.00 | 0.83 | -9.00 | -10.96 | 119.13 | -12.75 | 121.19 | 0.2544 | 848.9 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.40 | -12.09 | 118.92 | -12.95 | 124.50 | 0.2672 | 1101.0 | 918.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -13.47 | 118.76 | -13.12 | 128.29 | 0.2826 | 880.0 | 669.7 | |
| 0.00 | 3.06 | 0.00 | 1.57 | -12.39 | 118.78 | -13.09 | 125.15 | 0.2719 | 634.0 | 623.4 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -11.79 | 118.75 | -13.13 | 123.21 | 0.2669 | 1238.0 | 940.8 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -11.94 | 118.71 | -13.16 | 123.61 | 0.2688 | 919.0 | 695.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -13.88 | 118.48 | -13.40 | 128.91 | 0.2903 | 929.0 | 708.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.49 | 118.58 | -13.30 | 121.92 | 0.2667 | 1058.0 | 837.1 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -15.50 | 117.91 | -13.97 | 131.97 | 0.3144 | 769.0 | 649.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -12.20 | 118.05 | -13.83 | 123.17 | 0.2804 | 775.0 | 665.7 | |
| 0.00 | 1.95 | 0.00 | 1.02 | -12.29 | 116.27 | -15.61 | 120.48 | 0.3065 | -1048.0 | -827.0 | |
| 0.42 | 2.46 | 0.22 | 1.28 | -12.55 | 115.94 | -15.94 | 120.73 | 0.3133 | -1075.8 | -836.1 | |
| 1.53 | 2.97 | 0.80 | 1.56 | -11.87 | 114.72 | -17.16 | 117.15 | 0.3259 | 941.3 | 744.6 | |
| 0.00 | 2.12 | 0.00 | 1.13 | -12.47 | 113.03 | -18.85 | 116.72 | 0.3547 | -950.0 | -755.1 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -11.57 | 112.81 | -19.07 | 114.13 | 0.3523 | -1125.0 | -933.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -11.98 | 112.62 | -19.26 | 115.02 | 0.3576 | -993.0 | -897.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -11.58 | 111.95 | -19.93 | 113.30 | 0.3652 | -840.0 | -672.2 | |
| 0.00 | 2.80 | 0.00 | 1.51 | -13.96 | 111.52 | -20.36 | 118.72 | 0.3867 | -904.0 | -756.9 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -11.81 | 111.70 | -20.17 | 113.67 | 0.3702 | -799.0 | -741.9 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -14.14 | 111.34 | -20.54 | 118.94 | 0.3904 | -904.0 | -812.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -14.16 | 111.11 | -20.77 | 118.75 | 0.3939 | -591.0 | -480.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -12.98 | 110.67 | -21.21 | 115.55 | 0.3925 | -855.0 | -698.4 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -15.50 | 107.89 | -23.99 | 118.51 | 0.4477 | -706.0 | -610.4 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -15.37 | 107.61 | -24.27 | 117.99 | 0.4508 | -777.0 | -592.0 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -16.26 | 106.71 | -25.17 | 118.98 | 0.4686 | -769.0 | -669.9 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -15.44 | 106.72 | -25.16 | 117.38 | 0.4634 | -812.0 | -601.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
