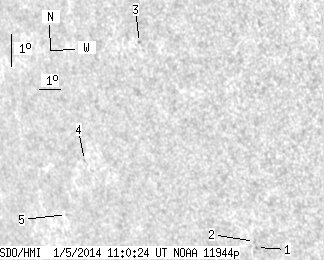

SDO HMI 2014-01-05 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 3.93 | -17.15 | 80.13 | -50.66 | 109.28 | 0.7843 | 312.8 | 240.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.64 | -19.45 | 83.57 | -47.22 | 112.94 | 0.7539 | 614.0 | 561.6 | |
| 0.00 | 1.44 | 0.00 | 1.08 | -19.26 | 83.55 | -47.24 | 112.70 | 0.7536 | 634.0 | 501.9 | |
| 0.00 | 1.19 | 0.00 | 0.93 | -13.05 | 80.23 | -50.56 | 103.98 | 0.7776 | -557.0 | -466.5 | |
| 0.00 | 0.76 | 0.00 | 0.66 | -16.43 | 76.28 | -54.51 | 107.63 | 0.8216 | 346.0 | 295.8 | |
| 0.00 | 0.68 | 0.00 | 0.62 | -18.00 | 74.58 | -56.20 | 109.25 | 0.8393 | 527.0 | 457.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
