SDO HMI 2014-01-05 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.15 | 306.02 | 54.67 | 176.98 | 9.18 | 99.73 | -28.31 | 65.53 | 0.5161 | 156.2 | 113.2 | |
|
previous
or next observation for the same group /

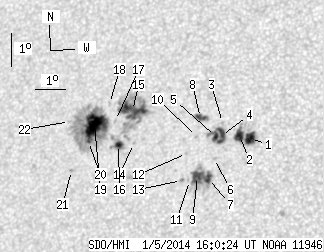

back to the solar disc SDO HMI 2014-01-05 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.66 | 22.76 | 4.84 | 12.73 | 8.80 | 103.45 | -24.59 | 63.15 | 0.4628 | -1134.5 | -639.0 | |
| 6.63 | -1.00 | 3.71 | -1.00 | 8.90 | 103.08 | -24.95 | 63.30 | 0.4685 | -910.1 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 9.31 | 102.49 | -25.55 | 63.05 | 0.4794 | -513.0 | -457.5 | |
| 7.14 | 18.60 | 4.02 | 10.48 | 8.92 | 102.49 | -25.55 | 63.80 | 0.4769 | -1055.9 | -729.3 | |
| 3.40 | -4.00 | 1.92 | -4.00 | 8.90 | 102.29 | -25.75 | 64.02 | 0.4794 | -904.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 8.23 | 102.31 | -25.73 | 65.28 | 0.4750 | -842.0 | -643.5 | |
| 3.82 | 33.81 | 2.15 | 19.03 | 7.64 | 102.15 | -25.89 | 66.57 | 0.4737 | -1168.1 | -716.6 | |
| 3.74 | 6.71 | 2.12 | 3.81 | 9.49 | 101.75 | -26.29 | 63.38 | 0.4907 | -814.9 | -725.8 | |
| 7.05 | -7.00 | 3.97 | -7.00 | 7.71 | 101.78 | -26.26 | 66.73 | 0.4793 | -941.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.92 | 101.66 | -26.38 | 64.52 | 0.4883 | -600.0 | -385.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 7.60 | 101.52 | -26.52 | 67.15 | 0.4823 | -259.0 | -397.7 | |
| 0.00 | 0.59 | 0.00 | 0.34 | 8.41 | 101.36 | -26.68 | 65.71 | 0.4893 | -622.0 | -570.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 7.60 | 101.25 | -26.79 | 67.33 | 0.4861 | -613.0 | -380.2 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 8.77 | 99.55 | -28.49 | 66.43 | 0.5164 | 714.0 | 501.5 | |
| 21.41 | 211.85 | 12.43 | 123.86 | 9.77 | 99.43 | -28.61 | 64.75 | 0.5239 | 1015.2 | 335.3 | |
| 4.16 | -15.00 | 2.41 | -15.00 | 8.75 | 99.04 | -29.00 | 66.82 | 0.5233 | 897.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 9.48 | 98.87 | -29.17 | 65.66 | 0.5297 | 764.0 | 665.3 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 10.01 | 98.62 | -29.42 | 64.94 | 0.5362 | 635.0 | 453.9 | |
| 28.12 | -15.00 | 16.50 | -15.00 | 9.39 | 98.16 | -29.88 | 66.33 | 0.5388 | 1114.4 | 999999 | |
| 1.02 | -15.00 | 0.60 | -15.00 | 8.88 | 98.00 | -30.04 | 67.32 | 0.5382 | 928.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 8.02 | 97.49 | -30.55 | 69.14 | 0.5408 | 841.0 | 706.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 9.51 | 97.28 | -30.76 | 66.72 | 0.5513 | -148.0 | -117.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
