SDO HMI 2014-01-05 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.90 | 0.00 | 5.83 | -16.30 | 80.22 | -46.72 | 108.90 | 0.7404 | -88.7 | -8.2 | |
|
previous
or next observation for the same group /

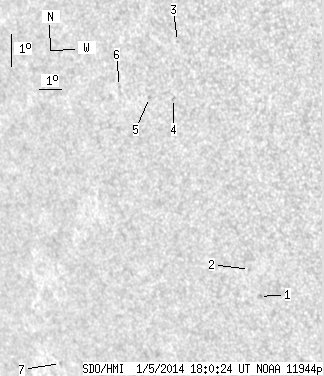

back to the solar disc SDO HMI 2014-01-05 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.32 | -19.43 | 83.37 | -43.56 | 114.03 | 0.7139 | 657.0 | 445.9 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -18.59 | 83.22 | -43.71 | 112.84 | 0.7131 | 109.0 | 257.0 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -11.63 | 81.99 | -44.95 | 102.90 | 0.7122 | -503.0 | -419.2 | |
| 0.00 | 1.53 | 0.00 | 1.09 | -13.32 | 81.43 | -45.50 | 105.14 | 0.7214 | -632.0 | -489.8 | |
| 0.00 | 1.10 | 0.00 | 0.80 | -13.24 | 80.40 | -46.53 | 104.85 | 0.7332 | -423.0 | -432.9 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -12.85 | 79.16 | -47.77 | 104.12 | 0.7468 | -373.0 | -319.8 | |
| 0.00 | 1.19 | 0.00 | 1.03 | -21.04 | 73.16 | -53.77 | 113.31 | 0.8220 | 544.0 | 509.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
