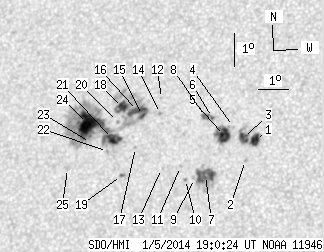

SDO HMI 2014-01-05 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.04 | 313.13 | 56.60 | 178.32 | 9.10 | 99.79 | -26.59 | 64.27 | 0.4923 | 109.0 | 131.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.22 | 22.51 | 3.97 | 12.40 | 8.71 | 103.66 | -22.72 | 61.47 | 0.4364 | -1163.7 | -640.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 8.12 | 103.38 | -23.00 | 62.99 | 0.4361 | -973.0 | -805.8 | |
| 6.20 | -1.00 | 3.42 | -1.00 | 8.81 | 103.27 | -23.11 | 61.68 | 0.4425 | -1000.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 9.15 | 102.92 | -23.46 | 61.35 | 0.4498 | -620.0 | -354.3 | |
| 11.30 | 21.06 | 6.26 | 11.69 | 8.89 | 102.64 | -23.74 | 62.15 | 0.4517 | -1086.7 | -642.0 | |
| 0.59 | 7.39 | 0.33 | 4.13 | 9.44 | 102.21 | -24.17 | 61.49 | 0.4615 | -1020.9 | -694.8 | |
| 13.84 | 31.25 | 7.68 | 17.32 | 7.70 | 102.10 | -24.28 | 65.06 | 0.4513 | -1031.7 | -618.5 | |
| 2.29 | -6.00 | 1.28 | -6.00 | 9.48 | 101.98 | -24.40 | 61.65 | 0.4650 | -716.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 7.62 | 101.75 | -24.64 | 65.53 | 0.4558 | -325.0 | -393.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 7.60 | 101.45 | -24.93 | 65.83 | 0.4599 | -601.0 | -420.8 | |
| 0.00 | 1.10 | 0.00 | 0.62 | 7.99 | 101.26 | -25.12 | 65.20 | 0.4650 | -670.0 | -555.8 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 10.07 | 100.48 | -25.90 | 61.95 | 0.4894 | 529.0 | 468.4 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 7.95 | 100.64 | -25.74 | 65.81 | 0.4735 | -466.0 | -518.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 9.61 | 100.48 | -25.90 | 62.78 | 0.4863 | -772.0 | -662.5 | |
| 2.72 | 70.41 | 1.55 | 40.25 | 9.57 | 99.89 | -26.49 | 63.38 | 0.4941 | -303.9 | 342.8 | |
| 9.09 | -15.00 | 5.18 | -15.00 | 9.73 | 99.71 | -26.68 | 63.25 | 0.4976 | 974.4 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 8.61 | 99.73 | -26.65 | 65.30 | 0.4902 | 729.0 | 575.5 | |
| 7.47 | -15.00 | 4.28 | -15.00 | 9.83 | 99.19 | -27.19 | 63.49 | 0.5052 | 1019.3 | 999999 | |
| 0.59 | 2.38 | 0.34 | 1.35 | 7.78 | 99.32 | -27.06 | 67.19 | 0.4910 | -764.9 | -517.3 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 9.41 | 99.06 | -27.32 | 64.35 | 0.5043 | 844.0 | 701.0 | |
| 11.89 | 142.59 | 6.80 | 82.40 | 8.90 | 98.93 | -27.45 | 65.38 | 0.5030 | 1118.9 | 351.6 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 8.52 | 98.80 | -27.58 | 66.20 | 0.5026 | 881.0 | 761.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 8.81 | 98.20 | -28.18 | 66.12 | 0.5125 | 267.0 | 270.3 | |
| 26.84 | -21.00 | 15.51 | -21.00 | 9.38 | 98.05 | -28.33 | 65.20 | 0.5179 | 1155.2 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.38 | 8.05 | 97.48 | -28.90 | 68.01 | 0.5182 | 585.0 | 452.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
