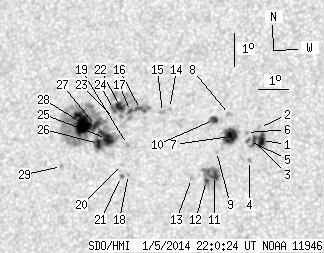

SDO HMI 2014-01-05 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.77 | 301.70 | 53.01 | 169.46 | 9.04 | 99.72 | -25.01 | 62.93 | 0.4703 | 159.5 | 139.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-05 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 18.26 | 3.73 | 9.92 | 8.71 | 103.83 | -20.89 | 59.39 | 0.4113 | -1181.3 | -792.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.10 | 103.75 | -20.98 | 58.66 | 0.4156 | -100.0 | -105.1 | |
| 2.80 | -1.00 | 1.52 | -1.00 | 8.71 | 103.61 | -21.11 | 59.64 | 0.4144 | -1009.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 8.11 | 103.48 | -21.24 | 61.07 | 0.4116 | -992.0 | -807.2 | |
| 0.76 | -1.00 | 0.42 | -1.00 | 8.72 | 103.42 | -21.31 | 59.86 | 0.4171 | -910.6 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 8.96 | 103.34 | -21.38 | 59.44 | 0.4201 | -765.0 | -637.8 | |
| 14.10 | 21.32 | 7.71 | 11.66 | 8.85 | 102.83 | -21.89 | 60.24 | 0.4262 | -1045.2 | -428.6 | |
| 0.00 | 2.38 | 0.00 | 1.31 | 9.52 | 102.76 | -21.97 | 58.97 | 0.4324 | -687.0 | -618.1 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 8.41 | 102.41 | -22.31 | 61.62 | 0.4287 | -826.0 | -673.2 | |
| 3.40 | 5.44 | 1.87 | 2.99 | 9.38 | 102.28 | -22.44 | 59.78 | 0.4377 | -793.4 | -614.9 | |
| 5.01 | 28.96 | 2.74 | 15.83 | 7.69 | 102.39 | -22.34 | 63.16 | 0.4239 | -1167.3 | -725.8 | |
| 1.36 | -11.00 | 0.74 | -11.00 | 7.55 | 102.14 | -22.59 | 63.72 | 0.4265 | -940.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.62 | 101.65 | -23.08 | 64.05 | 0.4339 | -643.0 | -532.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 9.75 | 100.79 | -23.93 | 60.62 | 0.4607 | -681.0 | -467.8 | |
| 0.00 | 2.38 | 0.00 | 1.33 | 9.64 | 100.57 | -24.15 | 61.06 | 0.4629 | -888.0 | -711.9 | |
| 3.14 | 49.35 | 1.77 | 27.82 | 9.75 | 99.84 | -24.88 | 61.56 | 0.4736 | 742.5 | 463.8 | |
| 1.61 | -16.00 | 0.91 | -16.00 | 9.70 | 99.51 | -25.21 | 61.97 | 0.4777 | 940.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 7.80 | 99.58 | -25.14 | 65.58 | 0.4642 | -795.0 | -695.4 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 8.70 | 99.49 | -25.24 | 63.89 | 0.4713 | 599.0 | 461.2 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 8.10 | 99.36 | -25.36 | 65.16 | 0.4692 | -514.0 | -416.9 | |
| 0.51 | 2.04 | 0.29 | 1.14 | 7.74 | 99.36 | -25.37 | 65.88 | 0.4671 | -755.7 | -612.4 | |
| 6.20 | -16.00 | 3.50 | -16.00 | 9.86 | 99.17 | -25.56 | 61.98 | 0.4834 | 1073.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 9.50 | 99.00 | -25.73 | 62.81 | 0.4833 | 870.0 | 667.8 | |
| 2.04 | -16.00 | 1.15 | -16.00 | 9.77 | 98.94 | -25.78 | 62.35 | 0.4859 | 857.4 | 999999 | |
| 14.10 | 158.40 | 7.96 | 90.15 | 8.90 | 98.78 | -25.95 | 64.12 | 0.4824 | 1188.4 | 395.2 | |
| 6.62 | -25.00 | 3.75 | -25.00 | 8.76 | 98.52 | -26.20 | 64.61 | 0.4850 | 931.9 | 999999 | |
| 3.48 | -25.00 | 1.98 | -25.00 | 9.31 | 98.38 | -26.34 | 63.70 | 0.4905 | 1073.3 | 999999 | |
| 22.76 | -25.00 | 12.97 | -25.00 | 9.38 | 97.94 | -26.78 | 63.94 | 0.4970 | 1174.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 8.10 | 97.34 | -27.39 | 66.79 | 0.4976 | 695.0 | 532.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
