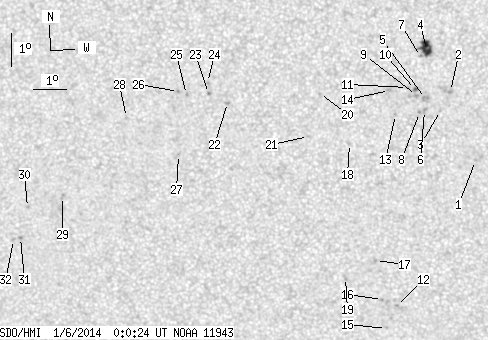

SDO HMI 2014-01-06 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.70 | 57.19 | 5.36 | 29.07 | -13.16 | 116.74 | -6.88 | 147.49 | 0.2091 | 307.4 | 214.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.51 | -14.31 | 121.03 | -2.59 | 166.76 | 0.1922 | 881.0 | 613.6 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -12.24 | 120.30 | -3.32 | 159.41 | 0.1618 | 923.0 | 772.8 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -12.81 | 119.99 | -3.63 | 158.95 | 0.1728 | 725.0 | 531.0 | |
| 10.28 | 13.85 | 5.15 | 6.93 | -10.96 | 119.60 | -4.03 | 151.81 | 0.1466 | 1197.8 | 797.7 | |
| 0.00 | 3.99 | 0.00 | 2.01 | -12.45 | 119.54 | -4.08 | 155.76 | 0.1701 | 877.0 | 806.9 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -12.81 | 119.51 | -4.12 | 156.43 | 0.1759 | 965.0 | 749.3 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -11.20 | 119.41 | -4.21 | 151.51 | 0.1517 | 789.0 | 653.3 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -12.87 | 119.35 | -4.27 | 155.80 | 0.1779 | 862.0 | 734.3 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -12.36 | 119.27 | -4.35 | 154.12 | 0.1706 | 1112.0 | 871.0 | |
| 0.42 | 1.61 | 0.21 | 0.81 | -12.18 | 119.24 | -4.38 | 153.50 | 0.1681 | 1170.8 | 983.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.12 | 119.00 | -4.62 | 152.09 | 0.1690 | 961.0 | 772.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -18.68 | 118.50 | -5.12 | 162.04 | 0.2754 | 998.0 | 749.7 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.92 | 118.62 | -5.00 | 152.42 | 0.1843 | 731.0 | 525.6 | |
| 0.00 | 2.38 | 0.00 | 1.20 | -12.20 | 118.46 | -5.17 | 149.64 | 0.1749 | 774.0 | 665.4 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -19.38 | 118.17 | -5.46 | 161.79 | 0.2883 | 743.0 | 612.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -18.50 | 118.07 | -5.55 | 160.40 | 0.2748 | 1044.0 | 870.9 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.31 | 117.89 | -5.73 | 158.14 | 0.2572 | 874.0 | 673.8 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.78 | 117.20 | -6.42 | 148.53 | 0.2090 | 833.0 | 489.2 | |
| 0.00 | 1.95 | 0.00 | 1.01 | -17.82 | 116.94 | -6.68 | 155.79 | 0.2714 | 291.0 | 361.0 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -12.28 | 116.33 | -7.29 | 140.74 | 0.1969 | -768.0 | -538.9 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.56 | 115.96 | -7.67 | 143.27 | 0.2179 | -798.0 | -591.7 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -12.52 | 113.52 | -10.11 | 132.37 | 0.2330 | -880.0 | -823.3 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -12.24 | 112.94 | -10.68 | 129.95 | 0.2373 | -838.0 | -792.2 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -11.91 | 112.93 | -10.70 | 128.80 | 0.2341 | -803.0 | -634.5 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -12.26 | 112.27 | -11.36 | 128.34 | 0.2464 | -910.0 | -719.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -12.17 | 112.03 | -11.60 | 127.47 | 0.2487 | -1016.0 | -831.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -14.05 | 111.93 | -11.69 | 132.96 | 0.2698 | -842.0 | -639.1 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.92 | 110.38 | -13.24 | 126.29 | 0.2783 | -760.0 | -597.3 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -15.26 | 108.22 | -15.40 | 128.60 | 0.3294 | -833.0 | -743.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.57 | 107.08 | -16.54 | 127.47 | 0.3471 | -771.0 | -632.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.47 | 106.78 | -16.85 | 129.07 | 0.3595 | -963.0 | -793.5 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -16.52 | 106.55 | -17.08 | 128.84 | 0.3630 | -608.0 | -455.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
