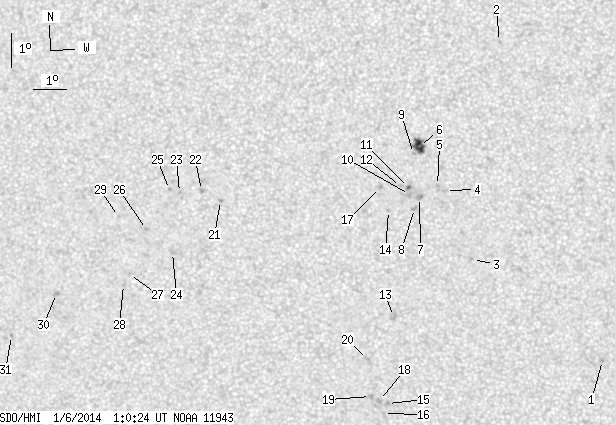

SDO HMI 2014-01-06 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.35 | 64.77 | 4.68 | 32.91 | -13.69 | 117.18 | -5.90 | 152.24 | 0.2095 | 355.9 | 309.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -17.40 | 125.16 | 2.09 | 188.27 | 0.2425 | 910.0 | 723.5 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -7.87 | 122.03 | -1.04 | 166.44 | 0.0773 | 827.0 | 692.6 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -14.35 | 121.18 | -1.90 | 170.26 | 0.1904 | 772.0 | 619.4 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -12.29 | 120.38 | -2.69 | 163.13 | 0.1589 | 802.0 | 675.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.14 | 120.14 | -2.93 | 161.42 | 0.1577 | 939.0 | 789.1 | |
| 8.84 | 12.91 | 4.42 | 6.46 | -10.97 | 119.61 | -3.46 | 155.28 | 0.1423 | 1202.8 | 824.6 | |
| 0.00 | 3.48 | 0.00 | 1.75 | -12.49 | 119.59 | -3.48 | 159.06 | 0.1666 | 851.0 | 811.3 | |
| 0.00 | 2.46 | 0.00 | 1.24 | -12.82 | 119.44 | -3.64 | 158.93 | 0.1729 | 876.0 | 779.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -11.18 | 119.43 | -3.64 | 154.77 | 0.1469 | 792.0 | 605.5 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -12.40 | 119.29 | -3.78 | 157.22 | 0.1671 | 911.0 | 757.7 | |
| 0.51 | 1.87 | 0.26 | 0.94 | -12.19 | 119.27 | -3.81 | 156.56 | 0.1640 | 1164.5 | 981.9 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.16 | 119.02 | -4.05 | 155.18 | 0.1652 | 918.0 | 718.6 | |
| 0.00 | 3.65 | 0.00 | 1.86 | -16.06 | 118.73 | -4.34 | 161.40 | 0.2291 | 784.0 | 682.6 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -12.88 | 118.65 | -4.43 | 155.04 | 0.1791 | 760.0 | 553.1 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -18.70 | 118.48 | -4.59 | 163.78 | 0.2729 | 1010.0 | 836.4 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -19.00 | 118.35 | -4.73 | 163.67 | 0.2784 | 793.0 | 595.6 | |
| 0.00 | 1.61 | 0.00 | 0.81 | -12.19 | 118.42 | -4.65 | 152.09 | 0.1703 | 841.0 | 718.9 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -18.60 | 118.23 | -4.84 | 162.86 | 0.2726 | 799.0 | 803.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -18.48 | 117.96 | -5.12 | 161.80 | 0.2720 | 891.0 | 722.6 | |
| 0.00 | 3.31 | 0.00 | 1.70 | -17.35 | 117.90 | -5.18 | 160.12 | 0.2545 | 844.0 | 577.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -12.53 | 113.54 | -9.53 | 134.05 | 0.2259 | -982.0 | -790.7 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -12.23 | 112.97 | -10.10 | 131.42 | 0.2296 | -1033.0 | -759.4 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -12.28 | 112.30 | -10.78 | 129.80 | 0.2389 | -899.0 | -778.0 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -14.07 | 112.00 | -11.08 | 134.49 | 0.2624 | -585.0 | -455.9 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.19 | 112.00 | -11.08 | 128.73 | 0.2419 | -921.0 | -784.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -13.37 | 111.23 | -11.84 | 130.61 | 0.2642 | -997.0 | -784.9 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -14.71 | 110.63 | -12.45 | 132.99 | 0.2863 | -816.0 | -514.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -15.01 | 110.42 | -12.65 | 133.32 | 0.2921 | -837.0 | -665.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -12.97 | 110.38 | -12.69 | 127.54 | 0.2712 | -768.0 | -602.8 | |
| 0.00 | 2.89 | 0.00 | 1.51 | -15.25 | 108.30 | -14.77 | 129.68 | 0.3211 | -966.0 | -706.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -16.49 | 106.77 | -16.31 | 129.97 | 0.3529 | -958.0 | -713.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
