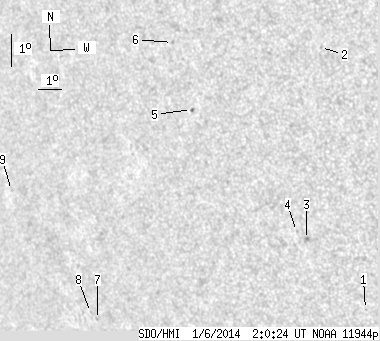

SDO HMI 2014-01-06 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 9.24 | 0.23 | 6.46 | -17.54 | 79.26 | -43.27 | 111.59 | 0.7034 | 193.2 | 220.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.33 | -21.29 | 85.00 | -37.53 | 119.12 | 0.6520 | 569.0 | 523.3 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -13.30 | 85.17 | -37.36 | 107.06 | 0.6199 | -580.0 | -472.9 | |
| 0.00 | 2.46 | 0.00 | 1.62 | -19.06 | 83.29 | -39.24 | 115.10 | 0.6626 | 790.0 | 668.3 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -18.80 | 82.95 | -39.57 | 114.59 | 0.6655 | 517.0 | 379.7 | |
| 0.34 | 1.36 | 0.23 | 0.93 | -14.95 | 79.67 | -42.85 | 107.96 | 0.6932 | 485.5 | 376.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -12.92 | 79.36 | -43.17 | 104.99 | 0.6927 | -569.0 | -470.7 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -21.11 | 73.35 | -49.18 | 114.47 | 0.7779 | 549.0 | 476.1 | |
| 0.00 | 0.76 | 0.00 | 0.60 | -20.88 | 73.11 | -49.42 | 114.12 | 0.7797 | 525.0 | 474.2 | |
| 0.00 | 0.76 | 0.00 | 0.62 | -17.01 | 70.85 | -51.68 | 108.76 | 0.7946 | -615.0 | -461.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
