SDO HMI 2014-01-06 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 9.59 | 0.33 | 6.76 | -16.95 | 77.45 | -43.98 | 110.57 | 0.7110 | 286.9 | 212.7 | |
|
previous
or next observation for the same group /

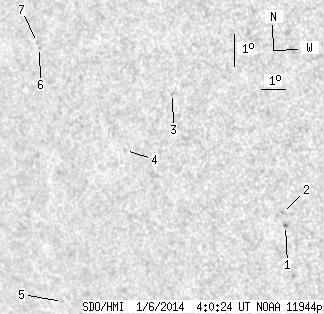

back to the solar disc SDO HMI 2014-01-06 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 1.44 | 0.33 | 0.94 | -19.05 | 83.27 | -38.17 | 115.54 | 0.6496 | 779.2 | 667.9 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -18.65 | 83.26 | -38.18 | 114.94 | 0.6482 | 700.0 | 601.6 | |
| 0.00 | 1.10 | 0.00 | 0.74 | -14.89 | 79.78 | -41.65 | 108.19 | 0.6784 | 665.0 | 521.5 | |
| 0.00 | 2.04 | 0.00 | 1.43 | -16.52 | 77.38 | -44.05 | 109.83 | 0.7110 | 284.0 | 307.9 | |
| 0.00 | 1.70 | 0.00 | 1.32 | -20.97 | 72.94 | -48.50 | 114.47 | 0.7707 | 648.0 | 463.9 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -13.27 | 74.51 | -46.92 | 104.76 | 0.7375 | -594.0 | -548.1 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -13.12 | 74.46 | -46.97 | 104.55 | 0.7379 | -636.0 | -498.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
