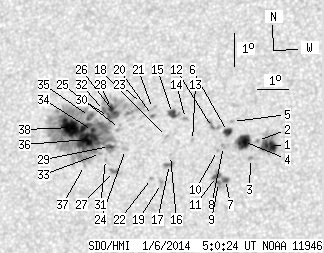

SDO HMI 2014-01-06 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.41 | 411.12 | 58.98 | 224.60 | 9.08 | 99.43 | -21.45 | 59.05 | 0.4224 | 114.5 | 214.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.17 | 24.65 | 6.97 | 13.05 | 8.60 | 104.12 | -16.76 | 53.77 | 0.3551 | -1172.5 | -548.3 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 8.79 | 103.77 | -17.12 | 53.90 | 0.3615 | -797.0 | -677.3 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 8.25 | 103.58 | -17.31 | 55.44 | 0.3591 | -990.0 | -820.7 | |
| 13.34 | 17.59 | 7.10 | 9.36 | 8.77 | 103.34 | -17.55 | 54.63 | 0.3671 | -1090.5 | -646.8 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 9.38 | 102.96 | -17.93 | 53.85 | 0.3778 | -782.0 | -605.7 | |
| 4.33 | 5.78 | 2.32 | 3.09 | 9.08 | 102.82 | -18.07 | 54.72 | 0.3768 | -918.5 | -589.9 | |
| 1.95 | 16.49 | 1.04 | 8.77 | 7.64 | 102.82 | -18.06 | 58.00 | 0.3640 | -1187.8 | -800.3 | |
| 0.00 | 2.12 | 0.00 | 1.13 | 8.63 | 102.72 | -18.17 | 55.87 | 0.3741 | -885.0 | -718.5 | |
| 0.76 | -7.00 | 0.41 | -7.00 | 7.55 | 102.61 | -18.28 | 58.51 | 0.3662 | -1012.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 8.52 | 102.53 | -18.35 | 56.40 | 0.3756 | -914.0 | -776.3 | |
| 2.89 | -7.00 | 1.54 | -7.00 | 7.73 | 102.54 | -18.35 | 58.18 | 0.3688 | -1023.7 | 999999 | |
| 0.51 | 5.86 | 0.27 | 3.14 | 9.21 | 102.34 | -18.55 | 55.13 | 0.3844 | -839.7 | -554.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.83 | 101.73 | -19.16 | 56.81 | 0.3892 | -618.0 | -552.2 | |
| 0.00 | 2.55 | 0.00 | 1.38 | 9.51 | 101.47 | -19.42 | 55.73 | 0.3985 | -851.0 | -677.0 | |
| 4.50 | 8.50 | 2.44 | 4.60 | 9.67 | 101.05 | -19.84 | 55.96 | 0.4055 | -877.5 | -562.1 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 8.40 | 101.06 | -19.83 | 58.66 | 0.3947 | -504.0 | -475.7 | |
| 0.00 | 3.99 | 0.00 | 2.15 | 8.13 | 101.04 | -19.85 | 59.28 | 0.3927 | -1011.0 | -868.2 | |
| 0.00 | 1.95 | 0.00 | 1.06 | 8.97 | 100.90 | -19.99 | 57.61 | 0.4016 | -609.0 | -385.2 | |
| 0.00 | 2.97 | 0.00 | 1.60 | 7.56 | 100.81 | -20.08 | 60.82 | 0.3914 | -865.0 | -712.9 | |
| 0.51 | 1.44 | 0.28 | 0.79 | 9.62 | 100.41 | -20.47 | 56.88 | 0.4136 | -681.3 | -563.0 | |
| 0.00 | 3.31 | 0.00 | 1.80 | 9.83 | 100.40 | -20.49 | 56.46 | 0.4155 | -145.0 | -171.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.72 | 100.49 | -20.40 | 60.86 | 0.3972 | -852.0 | -703.6 | |
| 0.00 | 4.25 | 0.00 | 2.32 | 9.99 | 100.04 | -20.85 | 56.59 | 0.4217 | 109.0 | 207.4 | |
| 0.00 | 2.29 | 0.00 | 1.25 | 8.61 | 99.61 | -21.28 | 59.95 | 0.4163 | 451.0 | 395.7 | |
| 0.00 | 4.25 | 0.00 | 2.32 | 9.25 | 99.38 | -21.51 | 58.89 | 0.4245 | 170.0 | 226.3 | |
| 0.51 | 285.73 | 0.28 | 157.40 | 9.74 | 99.19 | -21.70 | 58.13 | 0.4310 | 1187.0 | 461.8 | |
| 1.53 | 5.18 | 0.83 | 2.82 | 7.96 | 99.30 | -21.59 | 61.70 | 0.4157 | -773.2 | -605.8 | |
| 2.97 | -26.00 | 1.63 | -26.00 | 9.87 | 99.08 | -21.81 | 58.01 | 0.4334 | 1059.4 | 999999 | |
| 2.89 | -26.00 | 1.58 | -26.00 | 8.72 | 99.09 | -21.80 | 60.33 | 0.4242 | 1172.5 | 999999 | |
| 2.04 | -26.00 | 1.12 | -26.00 | 9.62 | 99.00 | -21.89 | 58.58 | 0.4325 | 1116.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 8.33 | 98.99 | -21.90 | 61.26 | 0.4228 | 884.0 | 650.6 | |
| 1.61 | -26.00 | 0.89 | -26.00 | 9.81 | 98.86 | -22.03 | 58.37 | 0.4359 | 763.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.51 | 98.81 | -22.07 | 61.06 | 0.4265 | -380.0 | -151.9 | |
| 1.61 | -26.00 | 0.89 | -26.00 | 9.21 | 98.51 | -22.38 | 59.96 | 0.4360 | 1237.8 | 999999 | |
| 3.31 | -26.00 | 1.83 | -26.00 | 9.64 | 98.39 | -22.50 | 59.24 | 0.4409 | 719.7 | 999999 | |
| 21.59 | -26.00 | 11.87 | -26.00 | 8.95 | 98.37 | -22.52 | 60.66 | 0.4359 | 1341.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 8.16 | 98.32 | -22.57 | 62.31 | 0.4309 | 816.0 | 627.0 | |
| 28.39 | -26.00 | 15.69 | -26.00 | 9.32 | 97.86 | -23.03 | 60.45 | 0.4457 | 1198.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
