SDO HMI 2014-01-06 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.59 | 9.84 | 0.38 | 6.71 | -18.78 | 78.97 | -41.37 | 113.93 | 0.6848 | 639.6 | 533.4 | |
|
previous
or next observation for the same group /

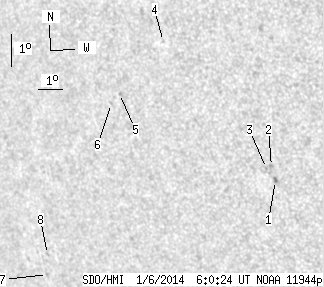

back to the solar disc SDO HMI 2014-01-06 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.59 | 1.95 | 0.38 | 1.25 | -19.11 | 83.30 | -37.04 | 116.12 | 0.6363 | 821.6 | 688.6 | |
| 0.00 | 1.95 | 0.00 | 1.25 | -18.68 | 83.26 | -37.09 | 115.45 | 0.6350 | 657.0 | 548.5 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -18.73 | 83.05 | -37.30 | 115.44 | 0.6378 | 666.0 | 573.0 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -14.74 | 79.94 | -40.41 | 108.32 | 0.6627 | 493.0 | 441.2 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -16.23 | 77.76 | -42.58 | 109.83 | 0.6930 | 719.0 | 641.2 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -16.52 | 77.35 | -42.99 | 110.12 | 0.6986 | 526.0 | 440.1 | |
| 0.00 | 1.10 | 0.00 | 0.84 | -21.58 | 72.71 | -47.64 | 115.49 | 0.7635 | 536.0 | 426.1 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -20.97 | 72.97 | -47.37 | 114.79 | 0.7591 | 629.0 | 538.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
