SDO HMI 2014-01-06 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.60 | 420.83 | 59.30 | 228.24 | 9.04 | 99.44 | -20.36 | 57.74 | 0.4074 | 163.1 | 170.4 | |
|
previous
or next observation for the same group /

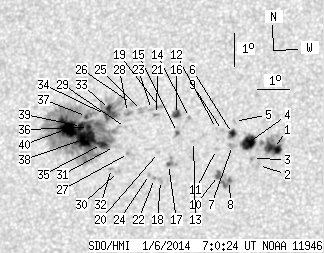

back to the solar disc SDO HMI 2014-01-06 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.81 | 29.07 | 6.22 | 15.30 | 8.54 | 104.28 | -15.52 | 51.78 | 0.3384 | -1207.3 | -590.3 | |
| 0.00 | 2.04 | 0.00 | 1.07 | 8.04 | 103.83 | -15.97 | 53.75 | 0.3393 | -794.0 | -707.0 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 8.25 | 103.64 | -16.16 | 53.57 | 0.3439 | -978.0 | -766.1 | |
| 13.60 | 18.19 | 7.19 | 9.61 | 8.74 | 103.49 | -16.31 | 52.68 | 0.3505 | -1065.7 | -454.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 9.38 | 103.03 | -16.77 | 52.01 | 0.3629 | -721.0 | -547.8 | |
| 3.48 | 5.69 | 1.85 | 3.02 | 9.02 | 102.98 | -16.82 | 52.89 | 0.3599 | -1037.8 | -753.6 | |
| 0.00 | 3.74 | 0.00 | 1.98 | 8.66 | 103.00 | -16.80 | 53.69 | 0.3562 | -736.0 | -707.7 | |
| 0.85 | 13.94 | 0.45 | 7.36 | 7.60 | 102.95 | -16.85 | 56.25 | 0.3471 | -1193.4 | -877.9 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 9.12 | 102.66 | -17.13 | 53.18 | 0.3650 | -854.0 | -730.7 | |
| 2.12 | -8.00 | 1.12 | -8.00 | 7.76 | 102.60 | -17.20 | 56.41 | 0.3533 | -1016.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 8.55 | 102.50 | -17.30 | 54.72 | 0.3617 | -836.0 | -654.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 9.18 | 102.47 | -17.33 | 53.34 | 0.3681 | -747.0 | -617.2 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 8.80 | 101.77 | -18.03 | 55.26 | 0.3738 | -706.0 | -583.3 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 9.53 | 101.61 | -18.19 | 53.91 | 0.3827 | -792.0 | -716.1 | |
| 0.85 | 2.55 | 0.46 | 1.37 | 9.09 | 101.25 | -18.54 | 55.39 | 0.3833 | -844.7 | -597.4 | |
| 3.65 | 5.69 | 1.96 | 3.06 | 9.63 | 101.19 | -18.61 | 54.30 | 0.3890 | -966.3 | -627.9 | |
| 0.93 | 6.63 | 0.50 | 3.54 | 8.13 | 101.02 | -18.78 | 57.85 | 0.3781 | -910.8 | -722.4 | |
| 0.00 | 2.63 | 0.00 | 1.41 | 7.65 | 100.79 | -19.01 | 59.25 | 0.3773 | -864.0 | -741.6 | |
| 0.00 | 2.63 | 0.00 | 1.42 | 9.89 | 100.64 | -19.16 | 54.56 | 0.3986 | -719.0 | -577.7 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 8.49 | 100.69 | -19.11 | 57.48 | 0.3858 | -735.0 | -534.2 | |
| 0.00 | 1.95 | 0.00 | 1.05 | 9.65 | 100.56 | -19.24 | 55.17 | 0.3975 | -877.0 | -629.2 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 7.71 | 100.60 | -19.20 | 59.35 | 0.3805 | -862.0 | -711.3 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 9.80 | 100.39 | -19.41 | 55.08 | 0.4011 | 42.0 | -77.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 7.84 | 100.43 | -19.37 | 59.28 | 0.3838 | -769.0 | -613.4 | |
| 0.00 | 4.59 | 0.00 | 2.48 | 9.78 | 100.08 | -19.72 | 55.56 | 0.4050 | 213.0 | 304.9 | |
| 0.00 | 2.72 | 0.00 | 1.48 | 10.00 | 99.74 | -20.06 | 55.55 | 0.4113 | 308.0 | 261.6 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 8.49 | 99.74 | -20.06 | 58.74 | 0.3987 | 934.0 | 650.0 | |
| 0.00 | 4.50 | 0.00 | 2.44 | 9.73 | 99.63 | -20.17 | 56.24 | 0.4105 | 760.0 | 719.4 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 9.27 | 99.60 | -20.20 | 57.23 | 0.4071 | 319.0 | 374.2 | |
| 0.00 | 2.46 | 0.00 | 1.33 | 7.95 | 99.45 | -20.35 | 60.27 | 0.3984 | -931.0 | -731.8 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 8.71 | 99.28 | -20.52 | 58.83 | 0.4067 | 736.0 | 630.5 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 8.05 | 99.22 | -20.58 | 60.33 | 0.4023 | -643.0 | -536.5 | |
| 3.40 | 291.62 | 1.85 | 159.49 | 9.83 | 99.05 | -20.75 | 56.77 | 0.4191 | 1102.6 | 428.3 | |
| 1.27 | -33.00 | 0.69 | -33.00 | 9.68 | 98.93 | -20.87 | 57.22 | 0.4194 | 1034.4 | 999999 | |
| 5.52 | -33.00 | 3.00 | -33.00 | 8.78 | 98.86 | -20.94 | 59.19 | 0.4130 | 1217.5 | 999999 | |
| 3.91 | -33.00 | 2.14 | -33.00 | 9.30 | 98.41 | -21.39 | 58.63 | 0.4233 | 1057.2 | 999999 | |
| 1.44 | -33.00 | 0.79 | -33.00 | 9.64 | 98.33 | -21.47 | 58.05 | 0.4272 | 807.8 | 999999 | |
| 24.05 | -33.00 | 13.13 | -33.00 | 8.97 | 98.34 | -21.46 | 59.40 | 0.4217 | 1393.9 | 999999 | |
| 5.61 | -33.00 | 3.07 | -33.00 | 9.34 | 98.18 | -21.61 | 58.82 | 0.4267 | 1111.0 | 999999 | |
| 27.11 | -33.00 | 14.88 | -33.00 | 9.29 | 97.74 | -22.06 | 59.44 | 0.4323 | 1193.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
