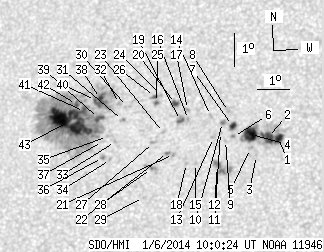

SDO HMI 2014-01-06 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.80 | 461.17 | 54.44 | 247.41 | 9.05 | 99.55 | -18.61 | 55.28 | 0.3842 | 43.8 | 192.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 62.64 | 2.70 | 32.73 | 8.53 | 104.61 | -13.55 | 47.97 | 0.3134 | -1213.3 | -502.9 | |
| 8.84 | -1.00 | 4.62 | -1.00 | 8.57 | 104.27 | -13.89 | 48.58 | 0.3180 | -1120.4 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.31 | 8.03 | 103.95 | -14.21 | 50.53 | 0.3163 | -738.0 | -589.1 | |
| 14.19 | -1.00 | 7.43 | -1.00 | 8.67 | 103.75 | -14.42 | 49.40 | 0.3256 | -1054.1 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 8.24 | 103.76 | -14.40 | 50.38 | 0.3210 | -954.0 | -788.8 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 8.61 | 103.22 | -14.94 | 50.52 | 0.3317 | -1025.0 | -840.0 | |
| 2.89 | 4.76 | 1.52 | 2.50 | 8.95 | 103.18 | -14.98 | 49.83 | 0.3357 | -995.4 | -776.0 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 9.37 | 103.04 | -15.13 | 49.12 | 0.3420 | -754.0 | -568.8 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 8.50 | 102.98 | -15.18 | 51.24 | 0.3336 | -691.0 | -536.1 | |
| 0.51 | 2.72 | 0.27 | 1.43 | 9.04 | 102.87 | -15.30 | 50.19 | 0.3407 | -901.0 | -685.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 8.74 | 102.82 | -15.35 | 50.97 | 0.3382 | -758.0 | -622.8 | |
| 2.04 | 14.62 | 1.07 | 7.66 | 7.78 | 102.76 | -15.40 | 53.38 | 0.3293 | -1057.0 | -889.3 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 8.60 | 102.61 | -15.56 | 51.69 | 0.3394 | -863.0 | -613.8 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 9.26 | 102.49 | -15.68 | 50.38 | 0.3478 | -772.0 | -591.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 7.82 | 102.08 | -16.08 | 54.45 | 0.3388 | -831.0 | -534.3 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 9.15 | 101.81 | -16.36 | 51.81 | 0.3553 | -908.0 | -822.8 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 9.46 | 101.76 | -16.40 | 51.21 | 0.3590 | -866.0 | -693.6 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 7.83 | 101.80 | -16.36 | 54.90 | 0.3426 | -931.0 | -705.6 | |
| 1.78 | 3.40 | 0.95 | 1.80 | 9.13 | 101.56 | -16.61 | 52.28 | 0.3583 | -929.8 | -714.3 | |
| 2.38 | 4.08 | 1.27 | 2.17 | 9.65 | 101.38 | -16.79 | 51.44 | 0.3657 | -1038.6 | -766.0 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 8.11 | 101.39 | -16.78 | 54.91 | 0.3508 | -1022.0 | -760.5 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 8.17 | 101.20 | -16.97 | 55.06 | 0.3539 | -921.0 | -819.0 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 8.78 | 101.04 | -17.12 | 53.91 | 0.3616 | -485.0 | -333.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 9.90 | 100.93 | -17.24 | 51.63 | 0.3740 | -792.0 | -555.9 | |
| 0.85 | 2.04 | 0.45 | 1.09 | 9.69 | 100.78 | -17.38 | 52.31 | 0.3738 | -1005.4 | -747.5 | |
| 0.93 | 2.97 | 0.50 | 1.59 | 9.87 | 100.71 | -17.46 | 52.03 | 0.3765 | -757.5 | -457.5 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 8.48 | 100.75 | -17.42 | 55.05 | 0.3628 | -859.0 | -633.2 | |
| 0.00 | 5.61 | 0.00 | 2.97 | 7.70 | 100.72 | -17.45 | 56.92 | 0.3562 | -931.0 | -731.0 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 6.83 | 100.50 | -17.66 | 59.33 | 0.3518 | -769.0 | -629.2 | |
| 0.00 | 2.55 | 0.00 | 1.37 | 9.59 | 99.87 | -18.29 | 53.92 | 0.3846 | 396.0 | 364.9 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 9.17 | 99.74 | -18.42 | 55.02 | 0.3825 | 817.0 | 799.0 | |
| 0.00 | 1.78 | 0.00 | 0.96 | 9.68 | 99.62 | -18.55 | 54.09 | 0.3888 | 854.0 | 716.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 8.54 | 99.55 | -18.61 | 56.68 | 0.3794 | 1020.0 | 818.4 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 8.00 | 99.42 | -18.74 | 58.08 | 0.3765 | -646.0 | -531.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 8.69 | 99.29 | -18.87 | 56.69 | 0.3842 | 789.0 | 628.3 | |
| 0.00 | 1.78 | 0.00 | 0.96 | 8.06 | 99.17 | -19.00 | 58.27 | 0.3806 | -692.0 | -492.6 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 8.55 | 99.14 | -19.02 | 57.23 | 0.3850 | 273.0 | 293.9 | |
| 2.12 | 318.72 | 1.15 | 172.42 | 9.85 | 99.01 | -19.16 | 54.62 | 0.3983 | 1015.4 | 466.5 | |
| 3.57 | -38.00 | 1.92 | -38.00 | 9.24 | 98.98 | -19.19 | 55.93 | 0.3933 | 987.6 | 999999 | |
| 0.85 | -38.00 | 0.46 | -38.00 | 9.79 | 98.85 | -19.31 | 54.95 | 0.3998 | 865.7 | 999999 | |
| 2.29 | -38.00 | 1.24 | -38.00 | 9.47 | 98.52 | -19.64 | 56.08 | 0.4013 | 659.6 | 999999 | |
| 1.87 | -38.00 | 1.01 | -38.00 | 9.68 | 98.25 | -19.91 | 55.98 | 0.4067 | 749.2 | 999999 | |
| 51.51 | -38.00 | 27.88 | -38.00 | 9.17 | 98.06 | -20.10 | 57.30 | 0.4049 | 1283.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
