SDO HMI 2014-01-06 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.90 | 504.82 | 62.39 | 270.06 | 9.09 | 99.49 | -18.13 | 54.51 | 0.3782 | 148.6 | 158.4 | |
|
previous
or next observation for the same group /

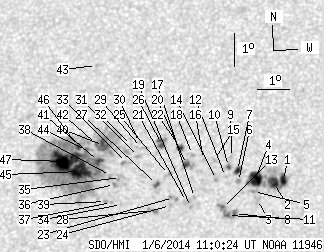

back to the solar disc SDO HMI 2014-01-06 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 51.50 | 2.70 | 26.84 | 8.58 | 104.68 | -12.94 | 46.52 | 0.3065 | -1136.3 | -646.0 | |
| 8.33 | -1.00 | 4.34 | -1.00 | 8.52 | 104.37 | -13.24 | 47.32 | 0.3096 | -1176.9 | 999999 | |
| 0.00 | 4.59 | 0.00 | 2.39 | 8.02 | 103.90 | -13.72 | 49.55 | 0.3099 | -819.0 | -609.2 | |
| 13.34 | -1.00 | 6.97 | -1.00 | 8.65 | 103.82 | -13.80 | 48.18 | 0.3178 | -1089.7 | 999999 | |
| 0.00 | 3.14 | 0.00 | 1.64 | 8.26 | 103.77 | -13.85 | 49.22 | 0.3142 | -999.0 | -777.2 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 8.57 | 103.30 | -14.32 | 49.42 | 0.3234 | -975.0 | -803.9 | |
| 2.80 | 5.01 | 1.47 | 2.63 | 8.91 | 103.25 | -14.36 | 48.72 | 0.3276 | -984.0 | -739.8 | |
| 1.02 | 12.75 | 0.53 | 6.66 | 7.61 | 103.21 | -14.41 | 51.96 | 0.3146 | -1156.6 | -854.8 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 9.30 | 103.05 | -14.56 | 48.21 | 0.3343 | -672.0 | -596.2 | |
| 0.85 | 2.21 | 0.45 | 1.16 | 9.03 | 102.97 | -14.65 | 48.98 | 0.3324 | -793.1 | -610.9 | |
| 1.02 | -8.00 | 0.53 | -8.00 | 7.55 | 103.00 | -14.62 | 52.51 | 0.3168 | -1065.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 8.73 | 102.89 | -14.73 | 49.84 | 0.3302 | -857.0 | -648.8 | |
| 0.59 | -8.00 | 0.31 | -8.00 | 7.80 | 102.83 | -14.78 | 52.20 | 0.3214 | -1076.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 8.64 | 102.62 | -15.00 | 50.56 | 0.3328 | -883.0 | -847.8 | |
| 0.00 | 2.12 | 0.00 | 1.12 | 9.25 | 102.53 | -15.09 | 49.32 | 0.3403 | -757.0 | -569.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 9.26 | 102.19 | -15.43 | 49.94 | 0.3446 | -670.0 | -587.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 8.11 | 101.96 | -15.66 | 53.01 | 0.3360 | -767.0 | -570.9 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 9.41 | 101.84 | -15.78 | 50.21 | 0.3506 | -797.0 | -713.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 7.85 | 101.84 | -15.77 | 53.86 | 0.3349 | -970.0 | -796.4 | |
| 2.46 | 8.58 | 1.30 | 4.53 | 9.12 | 101.67 | -15.95 | 51.19 | 0.3497 | -952.7 | -764.9 | |
| 0.00 | 3.82 | 0.00 | 2.01 | 8.00 | 101.71 | -15.90 | 53.72 | 0.3381 | -846.0 | -681.4 | |
| 2.29 | 3.48 | 1.22 | 1.85 | 9.63 | 101.46 | -16.16 | 50.40 | 0.3577 | -920.8 | -737.8 | |
| 0.00 | 3.74 | 0.00 | 1.97 | 8.13 | 101.31 | -16.31 | 54.10 | 0.3448 | -995.0 | -823.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 7.89 | 101.22 | -16.39 | 54.81 | 0.3436 | -577.0 | -476.6 | |
| 0.00 | 2.55 | 0.00 | 1.35 | 8.82 | 101.12 | -16.50 | 52.78 | 0.3539 | -796.0 | -567.4 | |
| 3.99 | 8.58 | 2.13 | 4.57 | 9.77 | 100.86 | -16.76 | 51.13 | 0.3666 | -880.5 | -638.2 | |
| 1.36 | 2.80 | 0.72 | 1.49 | 8.53 | 100.76 | -16.86 | 54.05 | 0.3558 | -888.7 | -646.5 | |
| 0.00 | 3.99 | 0.00 | 2.11 | 7.75 | 100.67 | -16.95 | 56.03 | 0.3498 | -894.0 | -700.1 | |
| 0.00 | 3.91 | 0.00 | 2.09 | 9.66 | 100.24 | -17.38 | 52.37 | 0.3735 | 271.0 | 281.9 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 9.81 | 100.17 | -17.45 | 52.15 | 0.3759 | 284.0 | 305.4 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 9.39 | 100.16 | -17.46 | 53.08 | 0.3719 | 777.0 | 493.2 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 9.72 | 99.92 | -17.70 | 52.72 | 0.3782 | 502.0 | 359.4 | |
| 0.00 | 4.16 | 0.00 | 2.22 | 9.21 | 99.79 | -17.83 | 54.03 | 0.3750 | 860.0 | 667.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 7.95 | 99.69 | -17.92 | 57.03 | 0.3649 | -616.0 | -355.7 | |
| 0.00 | 4.16 | 0.00 | 2.22 | 8.76 | 99.62 | -17.99 | 55.27 | 0.3731 | 811.0 | 686.7 | |
| 0.00 | 2.29 | 0.00 | 1.22 | 8.56 | 99.45 | -18.17 | 56.00 | 0.3736 | 1072.0 | 790.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 8.02 | 99.38 | -18.24 | 57.33 | 0.3698 | -720.0 | -537.6 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 8.83 | 99.31 | -18.31 | 55.59 | 0.3779 | 602.0 | 677.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 8.05 | 99.19 | -18.43 | 57.52 | 0.3727 | -667.0 | -526.0 | |
| 6.97 | 347.00 | 3.75 | 187.03 | 9.74 | 99.04 | -18.58 | 54.01 | 0.3898 | 1116.8 | 402.8 | |
| 3.99 | -40.00 | 2.14 | -40.00 | 9.26 | 98.91 | -18.71 | 55.22 | 0.3871 | 1028.7 | 999999 | |
| 0.76 | -40.00 | 0.41 | -40.00 | 9.78 | 98.81 | -18.80 | 54.26 | 0.3930 | 901.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 12.19 | 98.66 | -18.96 | 49.71 | 0.4182 | 729.0 | 593.6 | |
| 1.19 | -40.00 | 0.64 | -40.00 | 9.60 | 98.51 | -19.11 | 55.06 | 0.3955 | 990.8 | 999999 | |
| 23.03 | -40.00 | 12.39 | -40.00 | 8.97 | 98.32 | -19.29 | 56.66 | 0.3924 | 1367.1 | 999999 | |
| 2.04 | -40.00 | 1.10 | -40.00 | 9.73 | 98.25 | -19.37 | 55.15 | 0.4000 | 712.2 | 999999 | |
| 35.69 | -40.00 | 19.29 | -40.00 | 9.29 | 97.83 | -19.79 | 56.65 | 0.4017 | 1195.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
