SDO HMI 2014-01-06 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.48 | 0.00 | 10.68 | -17.00 | 78.84 | -38.23 | 112.53 | 0.6423 | 222.4 | 290.1 | |
|
previous
or next observation for the same group /

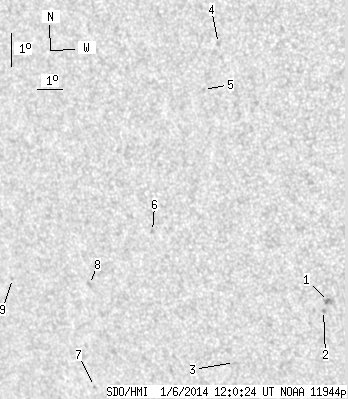

back to the solar disc SDO HMI 2014-01-06 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.27 | 0.00 | 3.24 | -18.65 | 83.32 | -33.75 | 117.09 | 0.5935 | 768.0 | 695.7 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -18.92 | 83.07 | -34.00 | 117.38 | 0.5979 | 791.0 | 689.9 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -20.38 | 79.24 | -37.83 | 117.61 | 0.6511 | 435.0 | 304.0 | |
| 0.00 | 2.38 | 0.00 | 1.47 | -10.77 | 80.68 | -36.39 | 103.17 | 0.6009 | -656.0 | -505.0 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -12.12 | 79.91 | -37.16 | 105.17 | 0.6142 | -520.0 | -403.5 | |
| 0.00 | 1.53 | 0.00 | 1.01 | -16.28 | 77.06 | -40.01 | 110.70 | 0.6620 | 523.0 | 466.7 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -20.88 | 73.22 | -43.85 | 115.81 | 0.7213 | 469.0 | 464.0 | |
| 0.00 | 2.55 | 0.00 | 1.77 | -17.77 | 74.05 | -43.02 | 111.85 | 0.7023 | 640.0 | 421.0 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -17.45 | 70.79 | -46.28 | 110.47 | 0.7383 | -448.0 | -396.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
