SDO HMI 2014-01-06 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 62.16 | 0.26 | 31.45 | -13.61 | 116.16 | -0.36 | 180.31 | 0.1922 | 40.5 | 257.5 | |
|
previous
or next observation for the same group /

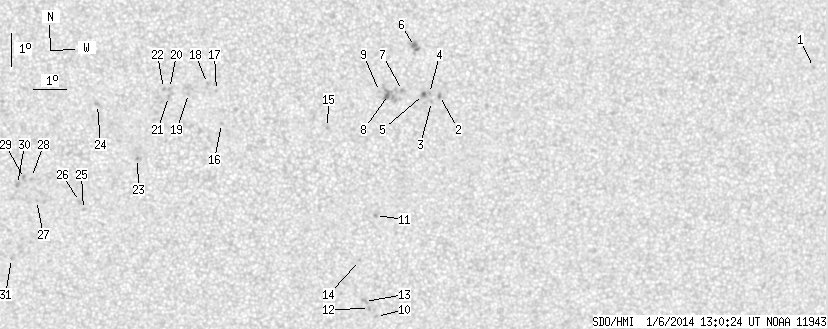

back to the solar disc SDO HMI 2014-01-06 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | -11.55 | 131.91 | 15.39 | 241.72 | 0.2966 | 937.0 | 722.9 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -12.49 | 120.49 | 3.97 | 203.71 | 0.1691 | 1070.0 | 841.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.67 | 120.25 | 3.73 | 202.01 | 0.1703 | 923.0 | 746.9 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.43 | 120.19 | 3.67 | 202.22 | 0.1661 | 976.0 | 828.7 | |
| 0.51 | 1.61 | 0.26 | 0.81 | -12.46 | 120.01 | 3.49 | 201.16 | 0.1654 | 1191.0 | 1051.8 | |
| 0.00 | 7.99 | 0.00 | 4.00 | -11.03 | 119.72 | 3.20 | 203.05 | 0.1407 | 1485.0 | 963.8 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -12.34 | 119.37 | 2.85 | 197.80 | 0.1598 | 963.0 | 808.8 | |
| 0.00 | 11.73 | 0.00 | 5.88 | -12.46 | 118.95 | 2.43 | 195.10 | 0.1598 | 1209.0 | 867.8 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -12.37 | 118.68 | 2.16 | 193.61 | 0.1571 | 821.0 | 698.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -19.16 | 118.65 | 2.13 | 187.47 | 0.2712 | 799.0 | 623.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -16.09 | 118.59 | 2.07 | 189.13 | 0.2195 | 978.0 | 832.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -18.92 | 118.43 | 1.91 | 186.82 | 0.2667 | 1008.0 | 794.0 | |
| 0.00 | 2.72 | 0.00 | 1.40 | -18.70 | 118.27 | 1.75 | 186.36 | 0.2628 | 944.0 | 790.9 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.45 | 118.11 | 1.59 | 186.31 | 0.2414 | 897.0 | 683.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -13.45 | 117.11 | 0.59 | 183.37 | 0.1715 | 792.0 | 649.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -13.32 | 113.90 | -2.62 | 165.20 | 0.1749 | -868.0 | -650.3 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.34 | 113.76 | -2.76 | 162.74 | 0.1592 | -840.0 | -633.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -12.13 | 113.49 | -3.03 | 160.73 | 0.1572 | -1047.0 | -766.8 | |
| 0.00 | 1.10 | 0.00 | 0.55 | -12.42 | 112.91 | -3.61 | 158.11 | 0.1655 | -765.0 | -673.8 | |
| 0.00 | 1.70 | 0.00 | 0.85 | -12.27 | 112.34 | -4.18 | 154.65 | 0.1671 | -948.0 | -800.7 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -12.51 | 112.31 | -4.21 | 155.09 | 0.1710 | -1005.0 | -698.8 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.27 | 112.16 | -4.36 | 153.70 | 0.1684 | -1037.0 | -907.9 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -14.36 | 111.33 | -5.19 | 154.79 | 0.2068 | -994.0 | -836.5 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -12.73 | 110.15 | -6.37 | 145.67 | 0.1928 | -931.0 | -740.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.88 | 109.62 | -6.90 | 151.47 | 0.2430 | -753.0 | -601.9 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -15.63 | 109.51 | -7.01 | 150.57 | 0.2403 | -846.0 | -657.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -15.59 | 108.18 | -8.34 | 146.10 | 0.2516 | -876.0 | -628.8 | |
| 0.00 | 0.42 | 0.00 | 0.22 | -14.90 | 108.06 | -8.46 | 144.03 | 0.2433 | -606.0 | -636.6 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -14.93 | 107.84 | -8.68 | 143.42 | 0.2458 | -739.0 | -713.1 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -15.10 | 107.62 | -8.90 | 143.18 | 0.2505 | -943.0 | -753.3 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.34 | 107.32 | -9.20 | 147.30 | 0.2837 | -838.0 | -708.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
