SDO HMI 2014-01-06 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.02 | 0.00 | 6.21 | -17.64 | 81.80 | -34.72 | 115.06 | 0.6021 | 462.4 | 491.5 | |
|
previous
or next observation for the same group /

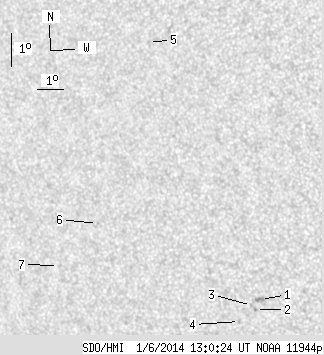

back to the solar disc SDO HMI 2014-01-06 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.91 | 0.00 | 2.38 | -18.64 | 83.37 | -33.15 | 117.42 | 0.5859 | 826.0 | 714.3 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -18.94 | 83.12 | -33.40 | 117.75 | 0.5906 | 790.0 | 638.0 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -18.82 | 83.00 | -33.52 | 117.47 | 0.5915 | 499.0 | 497.7 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -19.29 | 82.43 | -34.09 | 117.90 | 0.6008 | 472.0 | 393.9 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -10.79 | 80.65 | -35.87 | 103.33 | 0.5938 | -653.0 | -546.4 | |
| 0.00 | 0.93 | 0.00 | 0.61 | -16.12 | 77.71 | -38.81 | 110.87 | 0.6467 | 697.0 | 576.8 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -17.32 | 75.84 | -40.68 | 111.98 | 0.6734 | 606.0 | 576.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
