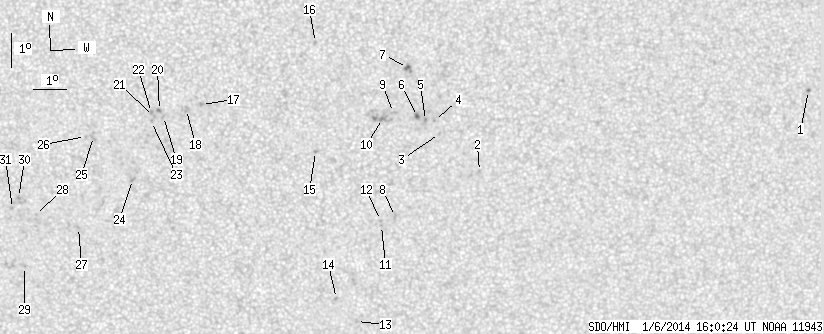

SDO HMI 2014-01-06 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 57.81 | 0.68 | 29.14 | -13.27 | 116.13 | 1.26 | 187.04 | 0.1871 | 92.2 | 146.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-06 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | -11.58 | 132.08 | 17.21 | 244.07 | 0.3238 | 1023.0 | 922.7 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -14.12 | 122.01 | 7.15 | 213.48 | 0.2197 | 858.0 | 767.4 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -12.99 | 120.76 | 5.90 | 211.58 | 0.1920 | 833.0 | 619.2 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.60 | 120.60 | 5.73 | 211.99 | 0.1849 | 972.0 | 825.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.61 | 120.33 | 5.46 | 210.76 | 0.1825 | 926.0 | 838.7 | |
| 0.59 | 2.29 | 0.30 | 1.15 | -12.49 | 120.09 | 5.22 | 209.96 | 0.1786 | 1183.0 | 970.0 | |
| 0.76 | 4.08 | 0.38 | 2.04 | -11.03 | 119.76 | 4.89 | 213.00 | 0.1543 | 1229.4 | 910.3 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -15.49 | 119.48 | 4.61 | 200.64 | 0.2206 | 874.0 | 723.6 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -12.37 | 119.36 | 4.49 | 206.70 | 0.1709 | 857.0 | 783.3 | |
| 0.00 | 10.53 | 0.00 | 5.29 | -12.55 | 119.03 | 4.16 | 204.54 | 0.1712 | 1123.0 | 846.5 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -15.76 | 119.05 | 4.18 | 198.48 | 0.2225 | 746.0 | 607.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -15.61 | 119.02 | 4.15 | 198.57 | 0.2199 | 966.0 | 708.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -18.67 | 118.34 | 3.47 | 192.45 | 0.2669 | 894.0 | 732.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.97 | 117.70 | 2.83 | 190.75 | 0.2532 | 991.0 | 712.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -13.54 | 117.01 | 2.14 | 191.92 | 0.1766 | 975.0 | 755.8 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.30 | 116.99 | 2.12 | 197.42 | 0.1221 | 902.0 | 738.2 | |
| 0.00 | 1.70 | 0.00 | 0.85 | -12.14 | 113.56 | -1.31 | 171.42 | 0.1501 | -1051.0 | -847.1 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -12.28 | 113.11 | -1.76 | 168.71 | 0.1540 | -825.0 | -874.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.49 | 112.41 | -2.46 | 164.79 | 0.1602 | -917.0 | -819.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -12.31 | 112.30 | -2.57 | 163.78 | 0.1578 | -1156.0 | -916.7 | |
| 0.00 | 1.10 | 0.00 | 0.55 | -12.49 | 112.11 | -2.76 | 163.03 | 0.1616 | -838.0 | -774.4 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.37 | 112.05 | -2.82 | 162.46 | 0.1600 | -848.0 | -681.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.64 | 112.05 | -2.82 | 162.94 | 0.1644 | -867.0 | -704.7 | |
| 0.00 | 1.87 | 0.00 | 0.94 | -14.37 | 111.45 | -3.42 | 162.76 | 0.1959 | -954.0 | -796.0 | |
| 0.00 | 4.08 | 0.00 | 2.05 | -13.08 | 110.29 | -4.58 | 154.63 | 0.1825 | -681.0 | -685.2 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -13.07 | 110.04 | -4.83 | 153.47 | 0.1843 | -852.0 | -679.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.80 | 109.76 | -5.10 | 157.91 | 0.2287 | -856.0 | -676.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -15.40 | 108.45 | -6.41 | 152.19 | 0.2319 | -811.0 | -688.7 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -16.97 | 108.06 | -6.81 | 153.85 | 0.2585 | -869.0 | -716.4 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -14.89 | 107.95 | -6.92 | 149.21 | 0.2285 | -963.0 | -845.0 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -15.21 | 107.75 | -7.12 | 149.27 | 0.2350 | -765.0 | -672.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
