SDO HMI 2014-01-06 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.25 | 0.00 | 8.90 | -17.89 | 79.21 | -35.10 | 115.30 | 0.6065 | 347.0 | 364.8 | |
|
previous
or next observation for the same group /

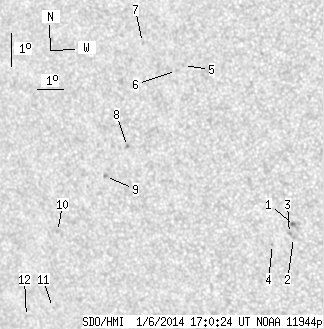

back to the solar disc SDO HMI 2014-01-06 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.31 | 0.00 | 1.97 | -18.69 | 83.37 | -30.94 | 118.84 | 0.5582 | 854.0 | 685.7 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -19.06 | 83.26 | -31.06 | 119.36 | 0.5617 | 773.0 | 619.9 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -18.93 | 83.14 | -31.17 | 119.08 | 0.5625 | 860.0 | 629.6 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -19.24 | 82.45 | -31.87 | 119.15 | 0.5729 | 526.0 | 436.0 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -13.73 | 80.25 | -34.07 | 108.85 | 0.5772 | -689.0 | -582.6 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -13.88 | 79.97 | -34.35 | 108.98 | 0.5815 | -607.0 | -494.5 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -12.99 | 78.86 | -35.46 | 107.10 | 0.5937 | -614.0 | -491.1 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -16.08 | 77.70 | -36.61 | 111.65 | 0.6189 | 753.0 | 669.6 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -16.96 | 76.65 | -37.66 | 112.57 | 0.6352 | 714.0 | 629.4 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -18.54 | 74.33 | -39.99 | 114.00 | 0.6693 | 699.0 | 570.7 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -20.85 | 73.41 | -40.91 | 116.89 | 0.6885 | 602.0 | 548.2 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -21.09 | 72.23 | -42.09 | 116.73 | 0.7026 | 293.0 | 232.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
