SDO HMI 2014-01-06 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.05 | 671.71 | 69.43 | 351.07 | 9.03 | 99.72 | -13.49 | 46.14 | 0.3194 | 165.4 | 150.5 | |
|
previous
or next observation for the same group /

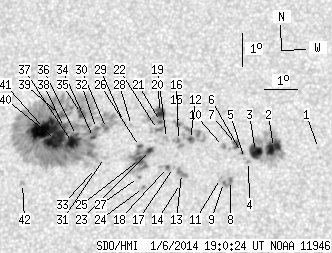

back to the solar disc SDO HMI 2014-01-06 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.60 | 106.27 | -6.94 | 29.43 | 0.2442 | -828.0 | -579.4 | |
| 13.50 | 71.26 | 6.92 | 36.52 | 8.64 | 104.92 | -8.29 | 33.89 | 0.2569 | -1277.6 | -454.4 | |
| 11.98 | -2.00 | 6.14 | -2.00 | 8.53 | 104.38 | -8.83 | 35.84 | 0.2606 | -1174.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.23 | 104.17 | -9.04 | 37.16 | 0.2586 | -960.0 | -794.8 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 8.32 | 104.05 | -9.16 | 37.32 | 0.2610 | -803.0 | -658.6 | |
| 0.34 | 2.12 | 0.17 | 1.09 | 8.50 | 103.96 | -9.26 | 37.18 | 0.2644 | -941.2 | -742.9 | |
| 2.97 | 6.45 | 1.53 | 3.32 | 8.74 | 103.80 | -9.41 | 37.08 | 0.2693 | -1009.8 | -713.0 | |
| 0.68 | 5.78 | 0.35 | 2.96 | 7.66 | 103.64 | -9.57 | 40.14 | 0.2567 | -1190.5 | -944.2 | |
| 0.34 | -8.00 | 0.17 | -8.00 | 7.60 | 103.43 | -9.78 | 40.90 | 0.2583 | -1074.2 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.27 | 8.69 | 103.41 | -9.80 | 38.34 | 0.2726 | -996.0 | -860.5 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 7.73 | 103.34 | -9.87 | 40.86 | 0.2609 | -881.0 | -762.8 | |
| 1.53 | 25.22 | 0.79 | 13.04 | 8.91 | 102.40 | -10.81 | 40.56 | 0.2862 | -1282.6 | -836.0 | |
| 0.00 | 6.37 | 0.00 | 3.28 | 7.89 | 102.16 | -11.06 | 43.67 | 0.2763 | -1045.0 | -993.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.59 | 102.13 | -11.08 | 44.49 | 0.2730 | -870.0 | -742.5 | |
| 0.76 | -12.00 | 0.40 | -12.00 | 9.37 | 102.02 | -11.19 | 40.50 | 0.2962 | -1073.6 | 999999 | |
| 0.42 | 6.88 | 0.22 | 3.56 | 8.89 | 102.04 | -11.17 | 41.56 | 0.2899 | -1113.6 | -864.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 8.08 | 101.91 | -11.30 | 43.84 | 0.2814 | -866.0 | -598.1 | |
| 0.76 | 3.74 | 0.39 | 1.93 | 8.08 | 101.73 | -11.48 | 44.29 | 0.2836 | -1127.8 | -820.7 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 8.95 | 101.67 | -11.54 | 42.33 | 0.2948 | -863.0 | -701.0 | |
| 6.45 | 19.45 | 3.36 | 10.11 | 9.74 | 101.46 | -11.75 | 41.06 | 0.3069 | -994.7 | -481.9 | |
| 1.36 | -20.00 | 0.71 | -20.00 | 9.47 | 101.47 | -11.74 | 41.64 | 0.3034 | -1050.1 | 999999 | |
| 0.00 | 7.39 | 0.00 | 3.84 | 9.23 | 101.39 | -11.82 | 42.38 | 0.3014 | -843.0 | -660.5 | |
| 2.72 | 36.10 | 1.41 | 18.71 | 8.60 | 101.16 | -12.05 | 44.39 | 0.2964 | -1174.4 | -527.8 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 7.49 | 101.01 | -12.20 | 47.52 | 0.2853 | 775.0 | 471.0 | |
| 6.62 | -23.00 | 3.43 | -23.00 | 8.33 | 100.87 | -12.34 | 45.73 | 0.2968 | -942.8 | 999999 | |
| 1.10 | -23.00 | 0.57 | -23.00 | 8.72 | 100.85 | -12.36 | 44.81 | 0.3015 | -754.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 7.79 | 100.85 | -12.36 | 47.11 | 0.2907 | 605.0 | 374.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 9.36 | 100.59 | -12.62 | 43.95 | 0.3121 | 955.0 | 644.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.49 | 100.34 | -12.87 | 44.22 | 0.3165 | 330.0 | 331.8 | |
| 0.59 | 455.39 | 0.31 | 239.48 | 9.28 | 99.82 | -13.39 | 45.80 | 0.3201 | 1031.3 | 455.9 | |
| 0.00 | 2.46 | 0.00 | 1.28 | 8.41 | 99.80 | -13.42 | 47.92 | 0.3107 | 239.0 | 217.7 | |
| 1.02 | -30.00 | 0.53 | -30.00 | 9.29 | 99.52 | -13.69 | 46.44 | 0.3239 | 698.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 8.08 | 99.53 | -13.68 | 49.27 | 0.3104 | -482.0 | -410.5 | |
| 1.44 | -30.00 | 0.75 | -30.00 | 9.02 | 99.44 | -13.78 | 47.23 | 0.3218 | 971.2 | 999999 | |
| 5.01 | -30.00 | 2.63 | -30.00 | 9.75 | 99.04 | -14.17 | 46.39 | 0.3348 | 1042.7 | 999999 | |
| 1.10 | -30.00 | 0.58 | -30.00 | 9.09 | 98.91 | -14.30 | 48.13 | 0.3290 | 903.0 | 999999 | |
| 11.04 | -30.00 | 5.79 | -30.00 | 8.88 | 98.80 | -14.42 | 48.84 | 0.3282 | 1448.1 | 999999 | |
| 0.93 | -30.00 | 0.49 | -30.00 | 9.34 | 98.53 | -14.68 | 48.31 | 0.3364 | 1093.7 | 999999 | |
| 3.23 | -30.00 | 1.70 | -30.00 | 9.70 | 98.39 | -14.82 | 47.76 | 0.3421 | 1005.3 | 999999 | |
| 23.19 | -30.00 | 12.18 | -30.00 | 8.98 | 98.27 | -14.94 | 49.63 | 0.3358 | 1419.5 | 999999 | |
| 33.97 | -30.00 | 17.91 | -30.00 | 9.32 | 97.91 | -15.30 | 49.52 | 0.3439 | 1282.1 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 7.67 | 97.30 | -15.91 | 54.48 | 0.3353 | 871.0 | 736.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
