SDO HMI 2014-01-06 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 44.21 | 0.00 | 22.39 | -13.48 | 116.19 | 4.08 | 200.59 | 0.2033 | -166.9 | 128.9 | |
|
previous
or next observation for the same group /

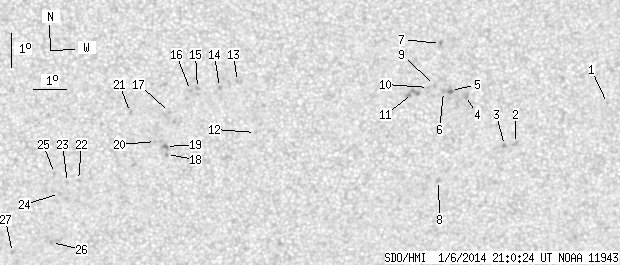

back to the solar disc SDO HMI 2014-01-06 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.81 | 125.02 | 12.91 | 233.65 | 0.2718 | 669.0 | 510.5 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -14.03 | 122.23 | 10.13 | 223.32 | 0.2498 | 635.0 | 594.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.10 | 121.90 | 9.79 | 222.20 | 0.2467 | 1056.0 | 836.1 | |
| 0.00 | 3.06 | 0.00 | 1.55 | -12.61 | 120.65 | 8.54 | 222.86 | 0.2140 | 840.0 | 757.4 | |
| 0.00 | 3.23 | 0.00 | 1.63 | -12.47 | 120.18 | 8.08 | 221.78 | 0.2069 | 1208.0 | 926.2 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -12.50 | 119.97 | 7.87 | 220.93 | 0.2049 | 926.0 | 772.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.07 | 119.84 | 7.73 | 225.59 | 0.1858 | 1157.0 | 899.8 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -15.16 | 119.91 | 7.80 | 213.24 | 0.2400 | 928.0 | 706.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.32 | 119.69 | 7.59 | 220.50 | 0.1995 | 813.0 | 620.4 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -12.38 | 119.51 | 7.41 | 219.63 | 0.1983 | 947.0 | 781.7 | |
| 0.00 | 6.20 | 0.00 | 3.13 | -12.56 | 119.03 | 6.92 | 217.19 | 0.1956 | 571.0 | 839.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.75 | 114.28 | 2.18 | 191.91 | 0.1797 | -812.0 | -586.0 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.22 | 113.73 | 1.62 | 190.54 | 0.1521 | -1035.0 | -849.6 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.40 | 113.19 | 1.08 | 186.92 | 0.1537 | -1001.0 | -882.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.43 | 112.52 | 0.42 | 182.68 | 0.1533 | -999.0 | -758.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -12.49 | 112.31 | 0.21 | 181.31 | 0.1542 | -920.0 | -717.1 | |
| 0.00 | 0.76 | 0.00 | 0.38 | -13.15 | 111.68 | -0.43 | 177.47 | 0.1656 | -961.0 | -748.9 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -14.40 | 111.58 | -0.52 | 177.28 | 0.1874 | -903.0 | -749.5 | |
| 0.00 | 3.14 | 0.00 | 1.58 | -14.17 | 111.55 | -0.55 | 177.06 | 0.1833 | -1015.0 | -858.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.01 | 111.25 | -0.86 | 175.38 | 0.1810 | -813.0 | -585.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.15 | 110.50 | -1.61 | 170.57 | 0.1677 | -880.0 | -734.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -15.18 | 108.89 | -3.21 | 164.83 | 0.2078 | -651.0 | -582.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.24 | 108.55 | -3.55 | 163.41 | 0.2103 | -775.0 | -554.5 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -15.57 | 108.30 | -3.80 | 162.79 | 0.2170 | -916.0 | -598.3 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -14.96 | 108.16 | -3.94 | 161.27 | 0.2079 | -967.0 | -849.2 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -17.04 | 108.02 | -4.08 | 163.62 | 0.2424 | -895.0 | -776.7 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.34 | 106.81 | -5.30 | 159.58 | 0.2536 | -714.0 | -533.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
