SDO HMI 2014-01-06 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.41 | 0.00 | 8.08 | -17.61 | 79.42 | -32.14 | 116.65 | 0.5685 | 415.2 | 319.5 | |
|
previous
or next observation for the same group /

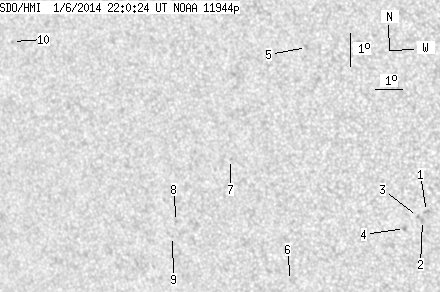

back to the solar disc SDO HMI 2014-01-06 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.38 | -18.65 | 83.38 | -28.17 | 120.70 | 0.5224 | 830.0 | 673.3 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -18.92 | 83.19 | -28.37 | 121.02 | 0.5265 | 747.0 | 619.3 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -18.79 | 83.04 | -28.52 | 120.68 | 0.5277 | 729.0 | 604.3 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -19.14 | 82.51 | -29.05 | 120.88 | 0.5366 | 686.0 | 548.4 | |
| 0.00 | 1.95 | 0.00 | 1.15 | -13.58 | 79.98 | -31.58 | 109.59 | 0.5424 | -711.0 | -632.6 | |
| 0.00 | 0.93 | 0.00 | 0.58 | -20.60 | 77.99 | -33.56 | 120.19 | 0.6010 | 583.0 | 485.5 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -16.84 | 76.61 | -34.95 | 113.53 | 0.6003 | 632.0 | 546.7 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -18.64 | 74.10 | -37.45 | 115.16 | 0.6389 | 603.0 | 455.2 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -19.09 | 73.83 | -37.73 | 115.71 | 0.6441 | 628.0 | 507.9 | |
| 0.00 | 0.93 | 0.00 | 0.63 | -12.97 | 68.87 | -42.68 | 105.08 | 0.6865 | -575.0 | -475.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
