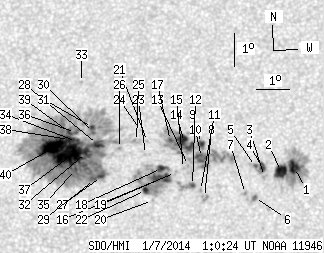

SDO HMI 2014-01-07 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.08 | 775.81 | 88.22 | 400.33 | 8.98 | 99.96 | -9.95 | 37.38 | 0.2801 | 209.9 | 114.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.28 | 72.30 | 5.23 | 36.77 | 8.57 | 105.15 | -4.76 | 21.12 | 0.2286 | -1251.9 | -465.8 | |
| 11.13 | -1.00 | 5.66 | -1.00 | 8.45 | 104.76 | -5.14 | 22.87 | 0.2292 | -1210.5 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.25 | 8.30 | 104.26 | -5.65 | 25.13 | 0.2304 | -943.0 | -755.1 | |
| 3.40 | 10.45 | 1.73 | 5.32 | 8.58 | 104.19 | -5.71 | 24.88 | 0.2351 | -1074.2 | -750.8 | |
| 0.93 | -4.00 | 0.48 | -4.00 | 8.61 | 103.98 | -5.92 | 25.62 | 0.2371 | -950.3 | 999999 | |
| 0.93 | 3.65 | 0.47 | 1.86 | 7.67 | 103.96 | -5.94 | 27.52 | 0.2230 | -1152.3 | -885.3 | |
| 0.00 | 1.95 | 0.00 | 0.99 | 7.80 | 103.69 | -6.21 | 28.32 | 0.2270 | -992.0 | -797.7 | |
| 0.00 | 3.48 | 0.00 | 1.77 | 7.69 | 102.47 | -7.44 | 33.09 | 0.2361 | -703.0 | -869.0 | |
| 2.97 | 102.97 | 1.52 | 52.81 | 9.32 | 102.35 | -7.56 | 30.02 | 0.2607 | -999.1 | -644.1 | |
| 6.80 | -9.00 | 3.48 | -9.00 | 8.89 | 102.36 | -7.55 | 30.83 | 0.2544 | -1159.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.90 | 102.34 | -7.56 | 33.03 | 0.2402 | -1151.0 | -865.4 | |
| 1.44 | 9.69 | 0.74 | 4.95 | 8.05 | 102.10 | -7.80 | 33.51 | 0.2447 | -1215.5 | -832.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 8.66 | 101.97 | -7.94 | 32.61 | 0.2544 | -954.0 | -827.8 | |
| 15.63 | -9.00 | 8.03 | -9.00 | 9.35 | 101.83 | -8.07 | 31.60 | 0.2656 | -1048.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.57 | 101.82 | -8.08 | 33.29 | 0.2546 | -868.0 | -711.1 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 8.45 | 101.58 | -8.32 | 34.32 | 0.2551 | -871.0 | -789.4 | |
| 1.87 | -9.00 | 0.96 | -9.00 | 9.42 | 101.41 | -8.50 | 32.79 | 0.2703 | -611.7 | 999999 | |
| 4.42 | 76.29 | 2.27 | 39.11 | 8.57 | 101.16 | -8.75 | 35.37 | 0.2610 | -1007.7 | -174.0 | |
| 11.47 | -18.00 | 5.88 | -18.00 | 8.27 | 101.16 | -8.74 | 36.04 | 0.2568 | -931.1 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.39 | 7.61 | 100.91 | -9.00 | 38.43 | 0.2506 | 675.0 | 460.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 9.40 | 100.71 | -9.19 | 34.92 | 0.2765 | 166.0 | 162.7 | |
| 2.89 | -18.00 | 1.48 | -18.00 | 7.92 | 100.69 | -9.22 | 38.34 | 0.2569 | 933.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.00 | 100.66 | -9.24 | 35.91 | 0.2717 | -186.0 | -204.3 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 9.76 | 100.49 | -9.41 | 34.80 | 0.2837 | 779.0 | 567.3 | |
| 0.00 | 4.42 | 0.00 | 2.28 | 9.40 | 100.38 | -9.52 | 35.87 | 0.2798 | 719.0 | 638.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 9.19 | 99.87 | -10.03 | 37.74 | 0.2822 | 810.0 | 566.9 | |
| 2.46 | 476.27 | 1.27 | 247.11 | 8.36 | 99.35 | -10.56 | 41.10 | 0.2770 | 821.7 | 445.2 | |
| 4.84 | -27.00 | 2.51 | -27.00 | 9.32 | 99.20 | -10.70 | 39.26 | 0.2909 | 949.7 | 999999 | |
| 0.76 | -27.00 | 0.39 | -27.00 | 8.27 | 99.14 | -10.77 | 41.87 | 0.2782 | -472.1 | 999999 | |
| 0.85 | -27.00 | 0.44 | -27.00 | 9.69 | 99.07 | -10.84 | 38.81 | 0.2970 | 1163.4 | 999999 | |
| 2.29 | -27.00 | 1.19 | -27.00 | 9.84 | 99.03 | -10.87 | 38.58 | 0.2994 | 986.0 | 999999 | |
| 5.44 | -27.00 | 2.81 | -27.00 | 9.09 | 98.87 | -11.03 | 40.64 | 0.2914 | 1146.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 11.21 | 98.65 | -11.26 | 36.78 | 0.3212 | 863.0 | 623.7 | |
| 3.23 | -27.00 | 1.67 | -27.00 | 9.42 | 98.56 | -11.35 | 40.68 | 0.2991 | 964.4 | 999999 | |
| 1.19 | -27.00 | 0.62 | -27.00 | 8.58 | 98.55 | -11.35 | 42.63 | 0.2886 | 1149.1 | 999999 | |
| 0.93 | -27.00 | 0.49 | -27.00 | 9.70 | 98.52 | -11.39 | 40.18 | 0.3030 | 851.3 | 999999 | |
| 36.45 | -27.00 | 18.89 | -27.00 | 9.00 | 98.39 | -11.52 | 42.05 | 0.2957 | 1490.6 | 999999 | |
| 4.67 | -27.00 | 2.43 | -27.00 | 9.49 | 98.34 | -11.56 | 41.07 | 0.3022 | 1050.0 | 999999 | |
| 1.95 | -27.00 | 1.02 | -27.00 | 9.70 | 98.34 | -11.57 | 40.63 | 0.3050 | 937.0 | 999999 | |
| 31.86 | -27.00 | 16.56 | -27.00 | 9.25 | 97.86 | -12.04 | 42.76 | 0.3047 | 1283.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
