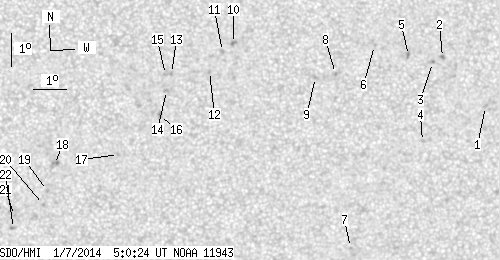

SDO HMI 2014-01-07 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.23 | 0.00 | 18.47 | -14.32 | 113.66 | 5.94 | 207.23 | 0.2239 | -222.2 | -255.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.88 | -14.02 | 121.79 | 14.07 | 232.57 | 0.2985 | 930.0 | 725.5 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -12.57 | 120.38 | 12.66 | 234.01 | 0.2655 | 992.0 | 849.8 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -12.72 | 120.07 | 12.35 | 232.89 | 0.2629 | 836.0 | 671.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -15.09 | 119.89 | 12.17 | 225.71 | 0.2856 | 831.0 | 589.9 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -12.52 | 119.32 | 11.60 | 231.84 | 0.2509 | 959.0 | 770.3 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -12.24 | 118.27 | 10.55 | 230.18 | 0.2339 | 823.0 | 654.9 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -18.32 | 117.82 | 10.10 | 213.33 | 0.3042 | 729.0 | 561.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -13.08 | 117.10 | 9.38 | 224.17 | 0.2290 | 799.0 | 640.6 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -13.21 | 116.49 | 8.77 | 221.90 | 0.2234 | -884.0 | -636.0 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -12.21 | 113.97 | 6.25 | 215.70 | 0.1831 | -1033.0 | -857.1 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -12.45 | 113.64 | 5.92 | 213.50 | 0.1832 | -934.0 | -714.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -13.05 | 113.26 | 5.54 | 210.06 | 0.1885 | -749.0 | -548.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -13.12 | 112.10 | 4.38 | 204.49 | 0.1804 | -1029.0 | -819.3 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -13.63 | 111.96 | 4.24 | 202.66 | 0.1874 | -803.0 | -667.6 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -13.15 | 111.92 | 4.20 | 203.53 | 0.1796 | -933.0 | -804.4 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -14.38 | 111.76 | 4.04 | 200.25 | 0.1981 | -812.0 | -708.6 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.55 | 110.52 | 2.80 | 192.94 | 0.2113 | -818.0 | -650.5 | |
| 0.00 | 4.50 | 0.00 | 2.28 | -15.85 | 108.56 | 0.85 | 183.87 | 0.2116 | -573.0 | -709.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -16.64 | 108.35 | 0.63 | 182.71 | 0.2248 | -799.0 | -650.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -17.06 | 108.23 | 0.51 | 182.11 | 0.2319 | -899.0 | -675.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -17.39 | 107.33 | -0.38 | 178.45 | 0.2375 | -701.0 | -543.2 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -17.79 | 107.30 | -0.42 | 178.37 | 0.2442 | -821.0 | -692.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
