SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 50.51 | 0.00 | 25.74 | -14.25 | 113.64 | 6.46 | 208.40 | 0.2287 | -338.1 | -231.0 | |
|
previous
or next observation for the same group /

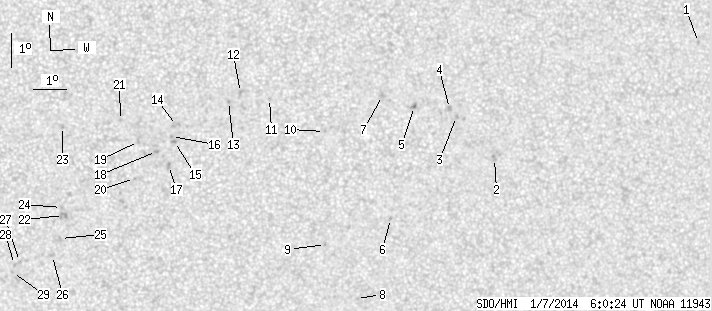

back to the solar disc SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.59 | -10.47 | 128.10 | 20.93 | 250.90 | 0.3733 | 781.0 | 613.6 | |
| 0.00 | 2.38 | 0.00 | 1.24 | -14.05 | 121.87 | 14.70 | 233.65 | 0.3070 | 664.0 | 637.4 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -12.81 | 120.61 | 13.44 | 234.86 | 0.2784 | 831.0 | 740.8 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -12.57 | 120.38 | 13.21 | 235.13 | 0.2731 | 837.0 | 717.3 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -12.53 | 119.30 | 12.12 | 233.03 | 0.2578 | 972.0 | 824.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.89 | 118.73 | 11.55 | 222.27 | 0.2877 | 807.0 | 592.6 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -12.21 | 118.30 | 11.12 | 231.75 | 0.2412 | 825.0 | 645.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -18.33 | 117.80 | 10.63 | 214.68 | 0.3091 | 537.0 | 488.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.70 | 116.74 | 9.57 | 215.24 | 0.2771 | 915.0 | 664.2 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.30 | 116.56 | 9.39 | 223.52 | 0.2316 | -833.0 | -714.0 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.33 | 114.85 | 7.67 | 220.99 | 0.1998 | -614.0 | -471.2 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -12.16 | 113.96 | 6.79 | 218.16 | 0.1879 | -1103.0 | -764.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.43 | 113.60 | 6.43 | 215.80 | 0.1878 | -910.0 | -789.4 | |
| 0.00 | 2.89 | 0.00 | 1.46 | -13.15 | 112.04 | 4.87 | 206.74 | 0.1844 | -771.0 | -786.9 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -13.63 | 111.99 | 4.81 | 205.34 | 0.1914 | -913.0 | -803.8 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -13.48 | 111.89 | 4.72 | 205.25 | 0.1884 | -965.0 | -844.3 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -14.35 | 111.82 | 4.64 | 203.03 | 0.2014 | -866.0 | -695.2 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -13.93 | 111.45 | 4.27 | 202.18 | 0.1924 | -1026.0 | -809.0 | |
| 0.00 | 1.61 | 0.00 | 0.81 | -13.64 | 110.89 | 3.72 | 200.11 | 0.1842 | -777.0 | -636.6 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -14.74 | 110.79 | 3.61 | 197.68 | 0.2016 | -706.0 | -508.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -13.01 | 110.34 | 3.16 | 198.44 | 0.1709 | -853.0 | -615.4 | |
| 0.00 | 4.93 | 0.00 | 2.50 | -15.86 | 108.63 | 1.45 | 186.63 | 0.2126 | -709.0 | -701.8 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -13.19 | 108.58 | 1.41 | 188.29 | 0.1669 | -879.0 | -546.9 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -15.62 | 108.57 | 1.39 | 186.48 | 0.2084 | -871.0 | -511.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -16.56 | 108.54 | 1.37 | 185.88 | 0.2242 | -809.0 | -661.9 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -17.07 | 108.30 | 1.12 | 184.64 | 0.2326 | -911.0 | -569.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -17.25 | 107.28 | 0.11 | 180.43 | 0.2349 | -833.0 | -608.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.34 | 107.13 | -0.05 | 179.80 | 0.2364 | -794.0 | -685.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -17.59 | 107.06 | -0.11 | 179.56 | 0.2406 | -832.0 | -636.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
