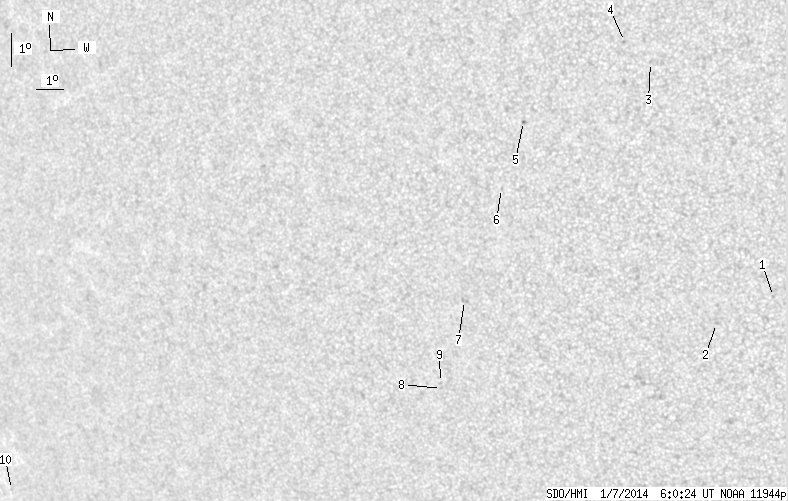

SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.28 | 0.00 | 6.81 | -17.65 | 75.68 | -31.50 | 117.04 | 0.5547 | 118.9 | 163.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.61 | -18.70 | 85.21 | -21.97 | 126.56 | 0.4430 | 720.0 | 535.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -19.48 | 83.16 | -24.02 | 125.79 | 0.4750 | 729.0 | 577.4 | |
| 0.00 | 0.42 | 0.00 | 0.23 | -11.56 | 81.95 | -25.22 | 108.82 | 0.4430 | -653.0 | -539.4 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -10.91 | 81.15 | -26.03 | 106.97 | 0.4524 | -774.0 | -677.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -13.19 | 77.44 | -29.74 | 109.67 | 0.5150 | -776.0 | -619.0 | |
| 0.00 | 0.76 | 0.00 | 0.45 | -15.16 | 76.36 | -30.81 | 112.73 | 0.5381 | 591.0 | 514.9 | |
| 0.00 | 2.55 | 0.00 | 1.55 | -18.50 | 74.39 | -32.79 | 117.27 | 0.5800 | 675.0 | 620.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -21.16 | 72.88 | -34.30 | 120.54 | 0.6125 | 642.0 | 482.4 | |
| 0.00 | 0.25 | 0.00 | 0.16 | -20.97 | 72.89 | -34.29 | 120.27 | 0.6113 | 583.0 | 520.7 | |
| 0.00 | 0.68 | 0.00 | 0.61 | -23.43 | 52.59 | -54.59 | 115.84 | 0.8331 | -548.0 | -500.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
