SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 195.19 | 890.72 | 99.91 | 456.20 | 8.96 | 100.14 | -7.03 | 28.16 | 0.2539 | 86.4 | 104.4 | |
|
previous
or next observation for the same group /

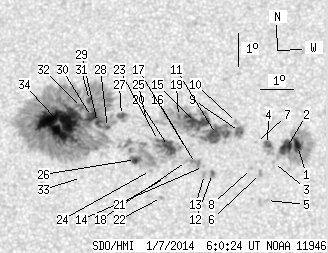

back to the solar disc SDO HMI 2014-01-07 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.82 | 77.35 | 3.96 | 39.21 | 8.46 | 105.31 | -1.86 | 8.66 | 0.2146 | -1342.7 | -491.1 | |
| 11.56 | -1.00 | 5.86 | -1.00 | 8.40 | 104.98 | -2.19 | 10.20 | 0.2145 | -1225.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.95 | 104.60 | -2.58 | 12.40 | 0.2082 | -899.0 | -656.7 | |
| 3.31 | 12.07 | 1.68 | 6.12 | 8.50 | 104.42 | -2.76 | 12.67 | 0.2180 | -1043.6 | -871.6 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 6.81 | 104.40 | -2.78 | 14.75 | 0.1900 | -801.0 | -727.7 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 7.62 | 104.21 | -2.96 | 14.59 | 0.2043 | -1149.0 | -926.8 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.56 | 104.09 | -3.09 | 14.05 | 0.2203 | -527.0 | -433.1 | |
| 0.00 | 0.93 | 0.00 | 0.47 | 7.77 | 103.94 | -3.23 | 15.65 | 0.2080 | -978.0 | -827.8 | |
| 4.16 | 140.75 | 2.12 | 71.76 | 8.89 | 103.58 | -3.60 | 15.85 | 0.2281 | -1111.4 | -504.8 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 9.16 | 103.49 | -3.69 | 15.90 | 0.2330 | -762.0 | -600.5 | |
| 21.16 | -9.00 | 10.77 | -9.00 | 8.81 | 102.89 | -4.28 | 18.80 | 0.2301 | -1198.0 | 999999 | |
| 0.93 | 3.23 | 0.47 | 1.64 | 7.63 | 102.78 | -4.39 | 21.09 | 0.2119 | -1059.0 | -849.2 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 7.60 | 102.54 | -4.63 | 22.18 | 0.2130 | -955.0 | -794.6 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 7.84 | 102.51 | -4.66 | 21.89 | 0.2170 | -971.0 | -677.8 | |
| 22.95 | -9.00 | 11.70 | -9.00 | 9.17 | 102.26 | -4.92 | 20.77 | 0.2397 | -1057.9 | 999999 | |
| 0.00 | 7.48 | 0.00 | 3.80 | 7.94 | 102.27 | -4.90 | 22.74 | 0.2200 | -975.0 | -933.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.33 | 102.03 | -5.15 | 23.04 | 0.2278 | -926.0 | -737.8 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.00 | 102.00 | -5.17 | 23.74 | 0.2228 | -912.0 | -719.9 | |
| 0.59 | -9.00 | 0.30 | -9.00 | 9.36 | 101.75 | -5.43 | 22.43 | 0.2458 | -746.6 | 999999 | |
| 11.56 | 43.09 | 5.89 | 21.94 | 8.45 | 101.46 | -5.72 | 25.06 | 0.2337 | -1187.0 | -480.5 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 7.52 | 101.38 | -5.79 | 27.20 | 0.2200 | -678.0 | -546.6 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 6.92 | 101.27 | -5.91 | 28.97 | 0.2119 | -968.0 | -684.7 | |
| 0.93 | -20.00 | 0.48 | -20.00 | 8.64 | 101.16 | -6.02 | 25.86 | 0.2387 | -838.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.74 | 100.93 | -6.25 | 28.52 | 0.2268 | 905.0 | 688.1 | |
| 0.00 | 4.42 | 0.00 | 2.26 | 9.12 | 100.82 | -6.36 | 26.21 | 0.2486 | -294.0 | -238.5 | |
| 4.76 | 51.93 | 2.42 | 26.47 | 8.07 | 100.48 | -6.70 | 29.51 | 0.2356 | 976.8 | 52.9 | |
| 3.06 | 529.19 | 1.57 | 272.22 | 9.40 | 100.03 | -7.14 | 28.42 | 0.2589 | 1044.4 | 445.1 | |
| 1.10 | -27.00 | 0.57 | -27.00 | 9.04 | 99.62 | -7.56 | 30.50 | 0.2571 | 1058.8 | 999999 | |
| 1.78 | -27.00 | 0.92 | -27.00 | 9.20 | 99.31 | -7.86 | 31.18 | 0.2620 | 1006.1 | 999999 | |
| 8.41 | -27.00 | 4.32 | -27.00 | 9.38 | 99.13 | -8.05 | 31.41 | 0.2663 | 1144.9 | 999999 | |
| 2.80 | -27.00 | 1.44 | -27.00 | 9.87 | 99.06 | -8.12 | 30.69 | 0.2739 | 1028.1 | 999999 | |
| 1.61 | -27.00 | 0.83 | -27.00 | 9.66 | 98.82 | -8.36 | 31.82 | 0.2729 | 880.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.54 | 98.86 | -8.31 | 36.33 | 0.2430 | -484.0 | -405.5 | |
| 86.70 | -27.00 | 44.61 | -27.00 | 9.18 | 98.20 | -8.98 | 34.68 | 0.2720 | 1380.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
