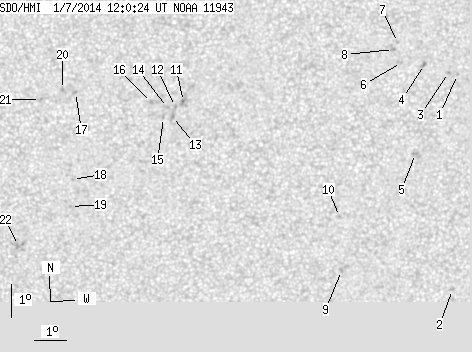

SDO HMI 2014-01-07 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 37.18 | 0.00 | 19.12 | -14.90 | 113.64 | 9.74 | 217.96 | 0.2643 | -87.5 | -119.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.44 | -12.68 | 120.43 | 16.53 | 240.36 | 0.3208 | 807.0 | 684.0 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -19.16 | 120.82 | 16.92 | 225.67 | 0.3860 | 796.0 | 600.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -12.62 | 120.15 | 16.24 | 240.11 | 0.3163 | 896.0 | 690.8 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -12.40 | 119.38 | 15.48 | 239.62 | 0.3035 | 1011.0 | 876.1 | |
| 0.00 | 2.55 | 0.00 | 1.33 | -15.06 | 119.27 | 15.37 | 232.20 | 0.3254 | 911.0 | 716.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.35 | 118.66 | 14.76 | 238.62 | 0.2927 | 866.0 | 726.1 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -11.76 | 118.50 | 14.60 | 240.18 | 0.2857 | 773.0 | 646.2 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -11.97 | 118.39 | 14.49 | 239.34 | 0.2857 | 1022.0 | 824.2 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -18.64 | 117.19 | 13.29 | 220.10 | 0.3397 | 886.0 | 721.4 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -17.00 | 117.00 | 13.10 | 223.20 | 0.3182 | 828.0 | 576.4 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -13.59 | 111.98 | 8.08 | 218.52 | 0.2204 | -1076.0 | -867.2 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.74 | 111.74 | 7.84 | 217.26 | 0.2199 | -967.0 | -786.7 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -14.04 | 111.66 | 7.76 | 216.14 | 0.2231 | -948.0 | -790.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -13.77 | 111.50 | 7.60 | 216.31 | 0.2178 | -1015.0 | -790.3 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -14.07 | 111.38 | 7.48 | 215.09 | 0.2208 | -763.0 | -638.8 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -13.63 | 111.00 | 7.10 | 214.92 | 0.2109 | -880.0 | -733.7 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -13.34 | 108.68 | 4.78 | 205.91 | 0.1865 | -912.0 | -700.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -15.95 | 108.64 | 4.74 | 200.58 | 0.2272 | -939.0 | -744.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -16.77 | 108.60 | 4.70 | 199.18 | 0.2399 | -867.0 | -661.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -13.25 | 108.28 | 4.38 | 204.22 | 0.1822 | -902.0 | -693.8 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -13.55 | 107.62 | 3.72 | 200.30 | 0.1827 | -779.0 | -608.9 | |
| 0.00 | 4.67 | 0.00 | 2.39 | -17.96 | 107.01 | 3.11 | 191.88 | 0.2521 | -673.0 | -666.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
