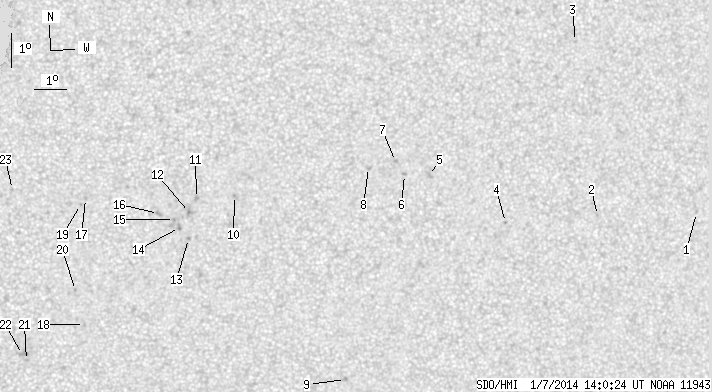

SDO HMI 2014-01-07 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 40.75 | 0.00 | 21.02 | -14.08 | 113.81 | 11.01 | 223.07 | 0.2712 | -214.0 | -207.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | -13.33 | 128.18 | 25.38 | 247.52 | 0.4533 | 652.0 | 484.5 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -13.50 | 124.92 | 22.12 | 244.58 | 0.4071 | 707.0 | 560.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -8.35 | 123.82 | 21.02 | 256.61 | 0.3664 | 761.0 | 528.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -13.77 | 121.96 | 19.16 | 240.88 | 0.3665 | 752.0 | 574.9 | |
| 0.00 | 3.48 | 0.00 | 1.82 | -12.41 | 119.44 | 16.64 | 241.27 | 0.3204 | 861.0 | 677.3 | |
| 0.00 | 1.78 | 0.00 | 0.93 | -12.39 | 118.65 | 15.85 | 240.20 | 0.3088 | 902.0 | 742.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -12.01 | 118.35 | 15.55 | 240.87 | 0.3015 | 961.0 | 862.9 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -12.20 | 117.52 | 14.72 | 239.00 | 0.2910 | 679.0 | 679.0 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -18.59 | 117.24 | 14.44 | 222.47 | 0.3516 | 843.0 | 756.9 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.09 | 113.41 | 10.61 | 227.65 | 0.2438 | -941.0 | -742.7 | |
| 0.00 | 2.38 | 0.00 | 1.21 | -13.19 | 112.25 | 9.45 | 224.08 | 0.2307 | -958.0 | -759.7 | |
| 0.00 | 3.91 | 0.00 | 1.99 | -13.61 | 112.05 | 9.25 | 222.21 | 0.2335 | -1024.0 | -761.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -14.39 | 112.05 | 9.25 | 219.99 | 0.2433 | -879.0 | -681.6 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -14.07 | 111.76 | 8.96 | 220.01 | 0.2360 | -975.0 | -813.0 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -13.83 | 111.60 | 8.79 | 220.18 | 0.2311 | -1057.0 | -874.8 | |
| 0.00 | 3.14 | 0.00 | 1.60 | -13.65 | 111.10 | 8.30 | 219.08 | 0.2235 | -888.0 | -709.5 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -13.22 | 108.86 | 6.06 | 211.91 | 0.1952 | -832.0 | -653.1 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -17.01 | 108.93 | 6.13 | 203.96 | 0.2525 | -693.0 | -597.8 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -13.40 | 108.71 | 5.91 | 210.79 | 0.1965 | -860.0 | -803.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.98 | 108.62 | 5.82 | 204.67 | 0.2346 | -851.0 | -673.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -18.11 | 107.16 | 4.36 | 196.23 | 0.2597 | -656.0 | -475.3 | |
| 0.00 | 3.82 | 0.00 | 1.96 | -17.93 | 107.03 | 4.23 | 195.98 | 0.2561 | -786.0 | -725.3 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.96 | 106.64 | 3.83 | 202.13 | 0.1738 | -639.0 | -404.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
