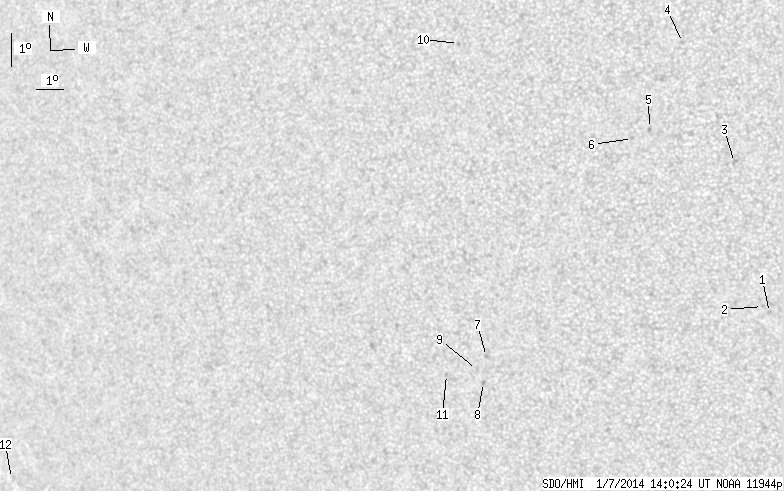

SDO HMI 2014-01-07 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.26 | 0.00 | 8.71 | -16.83 | 76.70 | -26.11 | 119.23 | 0.4812 | 132.3 | 142.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.79 | -19.22 | 83.17 | -19.63 | 130.45 | 0.4186 | 822.0 | 664.6 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -19.03 | 82.97 | -19.84 | 129.81 | 0.4194 | 804.0 | 612.9 | |
| 0.00 | 2.55 | 0.00 | 1.37 | -14.66 | 82.54 | -20.26 | 119.97 | 0.3885 | 531.0 | 511.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -11.04 | 81.18 | -21.63 | 109.97 | 0.3866 | -590.0 | -411.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -13.57 | 79.87 | -22.93 | 114.88 | 0.4194 | -780.0 | -623.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -13.86 | 79.28 | -23.53 | 115.01 | 0.4295 | -713.0 | -606.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -20.31 | 73.22 | -29.58 | 122.33 | 0.5500 | 746.0 | 642.4 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -21.10 | 72.94 | -29.86 | 123.41 | 0.5586 | 821.0 | 611.7 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -20.69 | 72.78 | -30.03 | 122.63 | 0.5580 | 699.0 | 555.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -10.86 | 73.74 | -29.06 | 105.45 | 0.4970 | -778.0 | -621.1 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -20.81 | 71.65 | -31.15 | 122.01 | 0.5725 | 588.0 | 492.1 | |
| 0.00 | 0.59 | 0.00 | 0.48 | -23.26 | 52.37 | -50.43 | 116.68 | 0.7949 | -562.0 | -512.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
