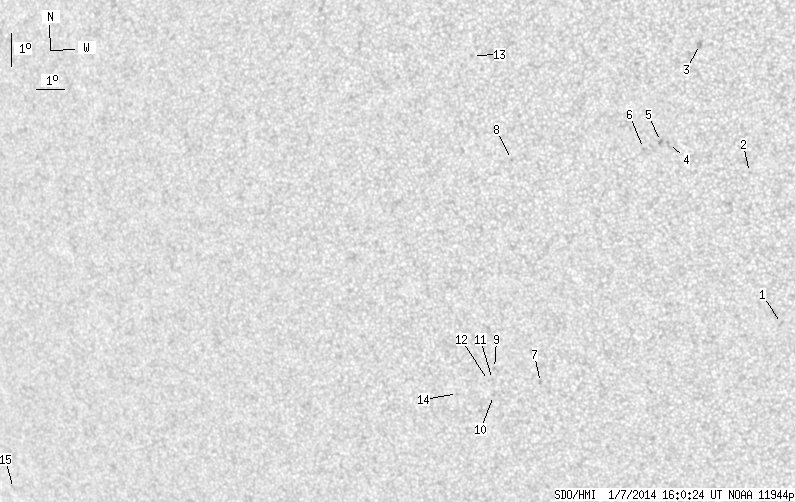

SDO HMI 2014-01-07 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.03 | 0.00 | 12.13 | -16.85 | 74.86 | -26.84 | 118.70 | 0.4882 | 11.9 | -109.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.33 | -19.22 | 83.17 | -18.53 | 131.97 | 0.4054 | 761.0 | 560.4 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -14.63 | 82.61 | -19.09 | 121.27 | 0.3719 | 695.0 | 528.4 | |
| 0.00 | 3.40 | 0.00 | 1.81 | -10.78 | 81.32 | -20.38 | 110.27 | 0.3663 | -935.0 | -703.9 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -13.70 | 80.07 | -21.63 | 116.33 | 0.4013 | -799.0 | -652.0 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -13.63 | 79.81 | -21.89 | 115.94 | 0.4046 | -884.0 | -736.1 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -13.83 | 79.24 | -22.46 | 115.86 | 0.4141 | -761.0 | -659.9 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -20.82 | 74.71 | -26.99 | 125.28 | 0.5218 | 670.0 | 550.2 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -14.04 | 74.80 | -26.90 | 112.90 | 0.4785 | -768.0 | -608.9 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -20.34 | 73.16 | -28.54 | 123.19 | 0.5374 | 789.0 | 645.8 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -21.17 | 72.95 | -28.75 | 124.38 | 0.5456 | 702.0 | 559.2 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -20.68 | 73.02 | -28.68 | 123.63 | 0.5414 | 782.0 | 647.1 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -20.70 | 72.87 | -28.83 | 123.55 | 0.5434 | 712.0 | 592.4 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.90 | 73.83 | -27.87 | 106.03 | 0.4795 | -683.0 | -529.3 | |
| 0.00 | 0.25 | 0.00 | 0.15 | -21.07 | 71.67 | -30.03 | 123.22 | 0.5604 | 406.0 | 275.7 | |
| 0.00 | 1.78 | 0.00 | 1.42 | -23.26 | 52.43 | -49.27 | 117.00 | 0.7837 | -508.0 | -439.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
