SDO HMI 2014-01-07 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.33 | 0.00 | 2.33 | -23.31 | 106.09 | 4.94 | 193.17 | 0.3933 | 8.0 | 55.0 | |
|
previous
or next observation for the same group /

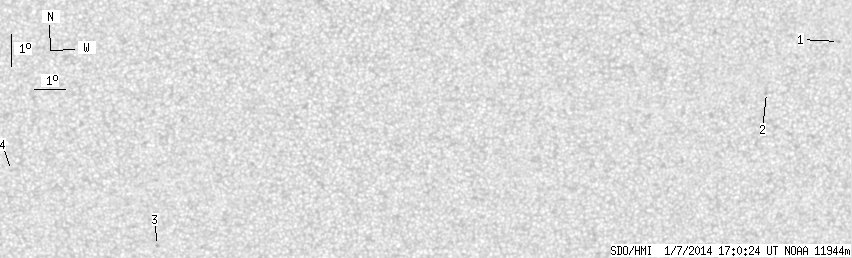

back to the solar disc SDO HMI 2014-01-07 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.41 | -20.15 | 118.11 | 16.96 | 223.86 | 0.3970 | 720.0 | 623.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -21.76 | 115.92 | 14.77 | 217.27 | 0.3927 | 790.0 | 664.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -26.66 | 96.24 | -4.91 | 168.88 | 0.3986 | -809.0 | -654.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -24.24 | 91.58 | -9.57 | 156.63 | 0.3838 | -669.0 | -560.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
