SDO HMI 2014-01-07 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.21 | 962.91 | 98.20 | 489.67 | 8.97 | 100.22 | 0.73 | 356.69 | 0.2265 | 171.3 | 123.0 | |
|
previous
or next observation for the same group /

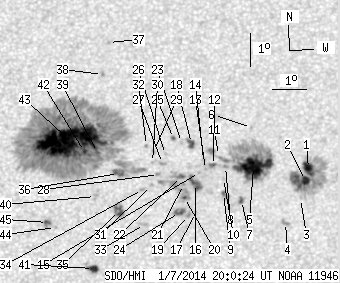

back to the solar disc SDO HMI 2014-01-07 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.92 | 87.14 | 4.55 | 44.39 | 8.55 | 105.57 | 6.08 | 333.82 | 0.2385 | -1150.2 | -534.7 | |
| 5.18 | -1.00 | 2.64 | -1.00 | 8.19 | 105.47 | 5.99 | 333.49 | 0.2323 | -1298.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.65 | 105.32 | 5.83 | 333.02 | 0.2228 | -170.0 | -176.4 | |
| 0.00 | 3.48 | 0.00 | 1.76 | 6.92 | 104.86 | 5.37 | 333.37 | 0.2083 | -861.0 | -799.6 | |
| 40.51 | 114.83 | 20.60 | 58.44 | 8.60 | 103.93 | 4.44 | 340.34 | 0.2284 | -1229.6 | -431.8 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 9.78 | 103.88 | 4.39 | 342.13 | 0.2472 | -687.0 | -551.0 | |
| 1.10 | 2.72 | 0.56 | 1.38 | 7.58 | 103.56 | 4.07 | 340.33 | 0.2098 | -1118.8 | -976.4 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 8.60 | 103.09 | 3.60 | 343.83 | 0.2240 | -1069.0 | -855.3 | |
| 0.68 | 4.59 | 0.34 | 2.32 | 7.79 | 103.02 | 3.53 | 343.05 | 0.2103 | -1161.5 | -982.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.24 | 103.03 | 3.54 | 343.64 | 0.2177 | -853.0 | -632.8 | |
| 0.00 | 10.19 | 0.00 | 5.18 | 8.93 | 102.88 | 3.39 | 345.10 | 0.2285 | -585.0 | -731.2 | |
| 0.00 | 3.82 | 0.00 | 1.94 | 8.63 | 102.73 | 3.24 | 345.40 | 0.2229 | -1214.0 | -943.8 | |
| 0.00 | 0.76 | 0.00 | 0.39 | 8.51 | 102.49 | 3.00 | 346.31 | 0.2198 | -1062.0 | -942.7 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 8.81 | 102.44 | 2.95 | 346.87 | 0.2246 | -721.0 | -550.2 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 8.42 | 102.31 | 2.82 | 347.00 | 0.2176 | -998.0 | -745.6 | |
| 5.69 | 11.04 | 2.88 | 5.59 | 8.09 | 102.19 | 2.70 | 347.20 | 0.2116 | -1188.8 | -940.6 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 7.21 | 102.18 | 2.69 | 346.25 | 0.1970 | -843.0 | -705.2 | |
| 2.97 | 6.12 | 1.51 | 3.11 | 9.29 | 102.08 | 2.59 | 348.83 | 0.2314 | -1087.4 | -775.8 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 7.12 | 101.97 | 2.49 | 347.17 | 0.1947 | -1119.0 | -906.8 | |
| 0.76 | 26.75 | 0.39 | 13.55 | 7.66 | 101.86 | 2.37 | 348.32 | 0.2034 | -1052.1 | -485.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.06 | 101.83 | 2.34 | 348.82 | 0.2098 | -957.0 | -820.1 | |
| 1.19 | -20.00 | 0.60 | -20.00 | 8.30 | 101.77 | 2.29 | 349.31 | 0.2137 | -1121.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.32 | 101.78 | 2.29 | 350.11 | 0.2310 | -748.0 | -566.9 | |
| 2.89 | 6.79 | 1.46 | 3.43 | 7.21 | 101.71 | 2.22 | 348.60 | 0.1952 | -1123.1 | -886.2 | |
| 0.59 | 1.61 | 0.30 | 0.82 | 9.44 | 101.54 | 2.05 | 351.20 | 0.2324 | -868.4 | -648.0 | |
| 0.00 | 0.93 | 0.00 | 0.47 | 8.96 | 101.30 | 1.81 | 351.93 | 0.2236 | -760.0 | -548.5 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 8.69 | 101.21 | 1.72 | 352.16 | 0.2188 | -845.0 | -716.2 | |
| 0.00 | 1.95 | 0.00 | 0.99 | 8.36 | 101.09 | 1.60 | 352.51 | 0.2129 | -848.0 | -643.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.05 | 100.94 | 1.46 | 353.55 | 0.2243 | -862.0 | -676.3 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 8.72 | 100.91 | 1.42 | 353.52 | 0.2186 | -666.0 | -560.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.02 | 100.88 | 1.39 | 353.30 | 0.2068 | 722.0 | 578.0 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 9.23 | 100.74 | 1.25 | 354.55 | 0.2271 | -863.0 | -658.1 | |
| 0.00 | 3.57 | 0.00 | 1.80 | 6.85 | 100.67 | 1.18 | 353.68 | 0.1864 | 714.0 | 263.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | 7.90 | 100.61 | 1.12 | 354.52 | 0.2042 | -874.0 | -596.0 | |
| 4.25 | 10.19 | 2.14 | 5.14 | 7.27 | 99.93 | 0.44 | 357.74 | 0.1926 | 1155.2 | 787.0 | |
| 3.14 | 624.92 | 1.59 | 317.95 | 8.39 | 99.90 | 0.41 | 358.08 | 0.2117 | 1079.2 | 419.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.37 | 99.61 | 0.12 | 359.59 | 0.2793 | 823.0 | 588.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 11.39 | 99.43 | -0.06 | 0.24 | 0.2627 | 866.0 | 765.5 | |
| 0.85 | -36.00 | 0.43 | -36.00 | 9.02 | 99.27 | -0.22 | 0.96 | 0.2225 | 1030.1 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.50 | 7.69 | 99.21 | -0.28 | 1.38 | 0.1998 | 988.0 | 794.5 | |
| 4.08 | 7.90 | 2.05 | 3.96 | 5.54 | 99.15 | -0.34 | 2.07 | 0.1626 | -1177.6 | -794.8 | |
| 1.70 | -36.00 | 0.86 | -36.00 | 9.05 | 98.89 | -0.60 | 2.68 | 0.2232 | 1313.2 | 999999 | |
| 107.27 | -36.00 | 54.57 | -36.00 | 9.38 | 98.44 | -1.05 | 4.55 | 0.2294 | 1387.7 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 6.77 | 98.03 | -1.46 | 7.89 | 0.1855 | 836.0 | 609.4 | |
| 1.44 | 3.91 | 0.73 | 1.97 | 6.92 | 97.79 | -1.70 | 9.03 | 0.1887 | 1142.8 | 956.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
