SDO HMI 2014-01-07 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.73 | 174.70 | 26.00 | 152.60 | 5.79 | 44.36 | -54.58 | 80.27 | 0.8246 | -982.9 | -204.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

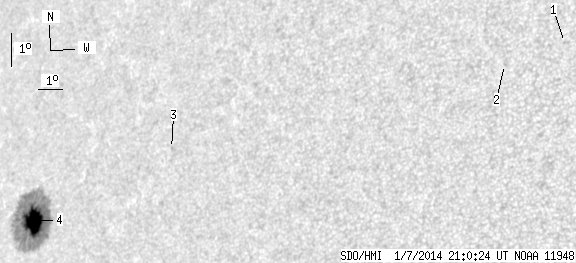

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.52 | 10.11 | 65.79 | -33.15 | 66.92 | 0.5874 | -762.0 | -634.6 | |
| 0.00 | 0.76 | 0.00 | 0.48 | 9.52 | 63.68 | -35.26 | 69.03 | 0.6120 | -779.0 | -688.4 | |
| 0.00 | 1.44 | 0.00 | 1.10 | 7.59 | 50.54 | -48.40 | 76.70 | 0.7640 | -460.0 | -364.9 | |
| 29.73 | 171.65 | 26.00 | 150.50 | 5.75 | 44.18 | -54.76 | 80.38 | 0.8265 | -1019.4 | -199.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
