SDO HMI 2014-01-07 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 27.76 | 0.26 | 14.61 | -14.52 | 113.86 | 15.48 | 231.85 | 0.3284 | -220.6 | -213.0 | |
|
previous
or next observation for the same group /

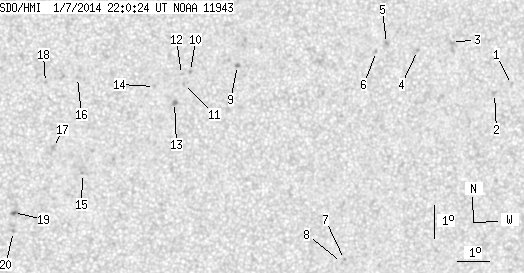

back to the solar disc SDO HMI 2014-01-07 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.66 | -13.47 | 122.78 | 24.39 | 246.58 | 0.4396 | 660.0 | 535.1 | |
| 0.00 | 2.38 | 0.00 | 1.31 | -13.76 | 122.24 | 23.86 | 245.55 | 0.4334 | 941.0 | 616.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -12.27 | 120.69 | 22.30 | 247.66 | 0.4026 | 848.0 | 601.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -12.53 | 119.60 | 21.22 | 246.12 | 0.3881 | 908.0 | 716.9 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -12.35 | 118.59 | 20.20 | 245.63 | 0.3720 | 911.0 | 777.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -12.59 | 118.28 | 19.90 | 244.72 | 0.3690 | 730.0 | 572.7 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -18.87 | 117.87 | 19.48 | 230.10 | 0.4132 | 810.0 | 678.0 | |
| 0.00 | 0.25 | 0.00 | 0.14 | -18.97 | 117.78 | 19.40 | 229.80 | 0.4130 | 701.0 | 599.3 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -13.09 | 113.91 | 15.52 | 237.82 | 0.3094 | -931.0 | -797.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.29 | 112.45 | 14.06 | 234.76 | 0.2909 | -941.0 | -775.4 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.68 | 112.25 | 13.87 | 233.28 | 0.2919 | -905.0 | -719.5 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -13.38 | 112.17 | 13.79 | 233.98 | 0.2880 | -755.0 | -499.0 | |
| 0.00 | 2.38 | 0.00 | 1.23 | -14.22 | 112.00 | 13.62 | 231.28 | 0.2939 | -1030.0 | -881.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -13.75 | 111.35 | 12.97 | 231.28 | 0.2806 | -852.0 | -681.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -16.40 | 109.25 | 10.87 | 219.50 | 0.2857 | -816.0 | -663.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -13.51 | 108.96 | 10.57 | 226.36 | 0.2476 | -961.0 | -772.2 | |
| 0.00 | 2.80 | 0.00 | 1.44 | -15.62 | 108.31 | 9.92 | 218.85 | 0.2658 | -811.0 | -692.5 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.67 | 107.98 | 9.59 | 223.17 | 0.2377 | -852.0 | -666.9 | |
| 0.51 | 3.06 | 0.26 | 1.58 | -17.60 | 107.16 | 8.77 | 211.26 | 0.2814 | -1066.0 | -808.9 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -18.17 | 107.19 | 8.80 | 210.25 | 0.2898 | -781.0 | -650.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
