SDO HMI 2014-01-07 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.32 | 0.00 | 4.50 | -22.37 | 110.27 | 11.89 | 209.47 | 0.4014 | 408.6 | 352.5 | |
|
previous
or next observation for the same group /

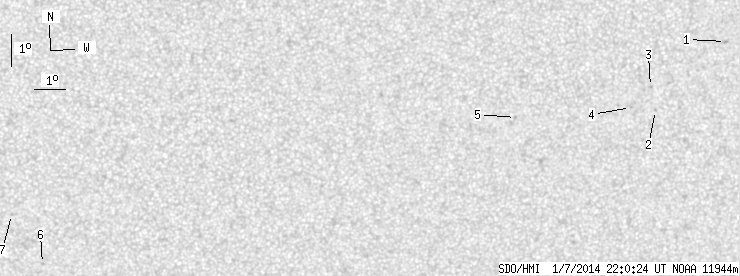

back to the solar disc SDO HMI 2014-01-07 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.83 | -19.61 | 117.99 | 19.61 | 228.85 | 0.4216 | 753.0 | 677.6 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -21.77 | 115.94 | 17.55 | 221.94 | 0.4208 | 815.0 | 631.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.04 | 115.68 | 17.30 | 222.83 | 0.4099 | 702.0 | 616.5 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -21.70 | 115.10 | 16.71 | 220.75 | 0.4111 | 700.0 | 595.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.06 | 111.36 | 12.97 | 213.43 | 0.3793 | 818.0 | 610.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -26.74 | 96.12 | -2.27 | 174.83 | 0.3933 | -332.0 | -420.6 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -25.17 | 95.14 | -3.24 | 172.01 | 0.3699 | -596.0 | -506.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
