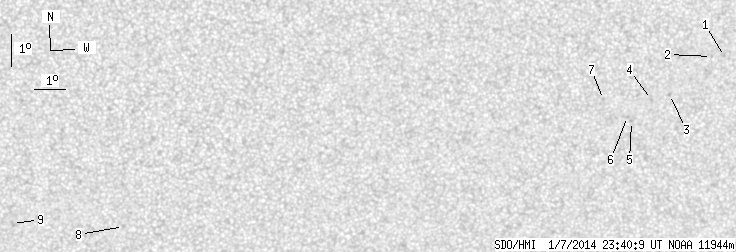

SDO HMI 2014-01-07 23:40:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.26 | 0.00 | 5.56 | -22.34 | 109.56 | 12.09 | 209.31 | 0.4035 | 400.9 | 234.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-07 23:40:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.59 | 0.00 | 0.33 | -19.70 | 118.02 | 20.55 | 229.94 | 0.4336 | 774.0 | 630.6 | |
| 0.00 | 0.42 | 0.00 | 0.23 | -19.71 | 117.59 | 20.12 | 229.36 | 0.4285 | 722.0 | 700.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.90 | 116.34 | 18.87 | 225.46 | 0.4258 | 779.0 | 626.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -21.07 | 115.76 | 18.29 | 224.32 | 0.4211 | 803.0 | 649.3 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -21.76 | 115.19 | 17.72 | 222.24 | 0.4222 | 711.0 | 579.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -21.61 | 115.03 | 17.56 | 222.27 | 0.4189 | 631.0 | 606.6 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -21.09 | 114.18 | 16.71 | 221.81 | 0.4041 | 665.0 | 497.4 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -25.20 | 98.82 | 1.34 | 183.33 | 0.3671 | -776.0 | -630.9 | |
| 0.00 | 2.29 | 0.00 | 1.22 | -25.10 | 95.20 | -2.27 | 174.36 | 0.3667 | -701.0 | -527.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
