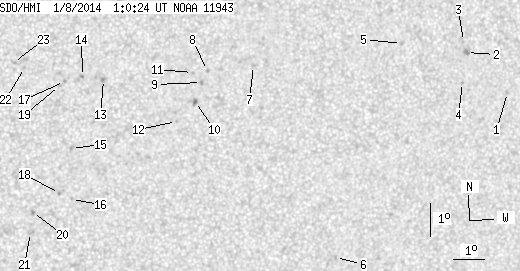

SDO HMI 2014-01-08 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 33.43 | 0.00 | 17.65 | -14.49 | 112.81 | 16.07 | 233.20 | 0.3341 | -402.7 | -279.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.95 | -13.74 | 122.27 | 25.53 | 246.89 | 0.4571 | 873.0 | 625.6 | |
| 0.00 | 3.31 | 0.00 | 1.82 | -12.58 | 120.78 | 24.04 | 248.32 | 0.4297 | 914.0 | 748.9 | |
| 0.00 | 0.59 | 0.00 | 0.33 | -12.25 | 120.64 | 23.91 | 248.95 | 0.4262 | 845.0 | 691.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -13.48 | 120.73 | 24.00 | 246.31 | 0.4337 | 726.0 | 588.3 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -12.36 | 118.62 | 21.89 | 247.16 | 0.3968 | 728.0 | 557.4 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -18.85 | 117.15 | 20.41 | 231.40 | 0.4241 | 655.0 | 562.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.12 | 113.93 | 17.20 | 240.25 | 0.3332 | -744.0 | -596.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.29 | 112.49 | 15.76 | 237.69 | 0.3141 | -917.0 | -785.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -13.65 | 112.33 | 15.59 | 236.44 | 0.3149 | -1032.0 | -786.5 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -14.22 | 112.18 | 15.44 | 234.65 | 0.3179 | -912.0 | -803.6 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -13.36 | 112.03 | 15.29 | 236.76 | 0.3081 | -694.0 | -524.0 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -14.83 | 111.62 | 14.88 | 232.09 | 0.3161 | -797.0 | -638.6 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -13.61 | 109.26 | 12.52 | 230.84 | 0.2731 | -966.0 | -821.5 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.52 | 108.61 | 11.87 | 229.61 | 0.2638 | -976.0 | -871.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.69 | 108.38 | 11.64 | 223.16 | 0.2853 | -875.0 | -698.3 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -17.23 | 108.47 | 11.73 | 219.77 | 0.3050 | -659.0 | -557.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -13.68 | 108.06 | 11.32 | 227.84 | 0.2585 | -906.0 | -699.6 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -17.05 | 108.08 | 11.35 | 219.24 | 0.2987 | -819.0 | -670.7 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.80 | 107.91 | 11.17 | 227.11 | 0.2580 | -700.0 | -585.7 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -17.64 | 107.27 | 10.53 | 215.97 | 0.2979 | -960.0 | -863.3 | |
| 0.00 | 2.29 | 0.00 | 1.19 | -18.24 | 107.24 | 10.50 | 214.67 | 0.3058 | -476.0 | -534.8 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.28 | 106.80 | 10.07 | 225.80 | 0.2384 | -837.0 | -668.5 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -13.13 | 106.46 | 9.72 | 225.28 | 0.2326 | -732.0 | -597.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
