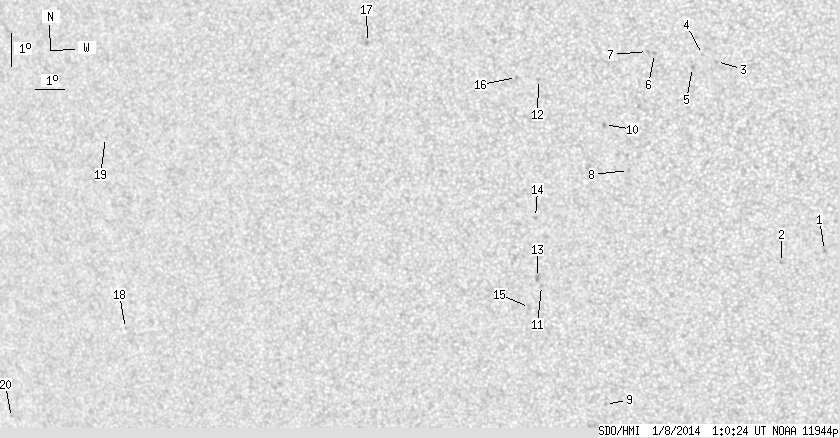

SDO HMI 2014-01-08 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.65 | 0.00 | 14.75 | -17.10 | 74.41 | -22.32 | 123.52 | 0.4355 | -16.8 | 86.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.81 | -19.21 | 83.11 | -13.62 | 140.25 | 0.3493 | 1033.0 | 747.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.55 | 81.70 | -15.04 | 138.20 | 0.3685 | 720.0 | 644.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.44 | 80.14 | -16.60 | 121.47 | 0.3272 | -851.0 | -607.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -13.23 | 79.71 | -17.02 | 120.29 | 0.3315 | -692.0 | -578.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.61 | 79.37 | -17.37 | 120.83 | 0.3394 | -821.0 | -607.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -13.17 | 78.19 | -18.55 | 118.18 | 0.3529 | -668.0 | -499.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.10 | 77.97 | -18.76 | 117.76 | 0.3556 | -750.0 | -645.2 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -16.66 | 77.02 | -19.71 | 124.98 | 0.3961 | 841.0 | 545.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.83 | 75.24 | -21.50 | 135.95 | 0.4841 | 730.0 | 508.9 | |
| 0.00 | 1.87 | 0.00 | 1.01 | -15.25 | 76.39 | -20.35 | 121.11 | 0.3935 | 852.0 | 648.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.09 | 73.66 | -23.07 | 127.78 | 0.4676 | 826.0 | 530.4 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.85 | 74.37 | -22.36 | 115.88 | 0.4124 | -823.0 | -628.5 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -19.84 | 73.57 | -23.17 | 127.22 | 0.4667 | 790.0 | 718.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -18.01 | 73.77 | -22.97 | 123.99 | 0.4495 | 839.0 | 667.2 | |
| 0.00 | 1.95 | 0.00 | 1.10 | -20.75 | 73.14 | -23.59 | 128.39 | 0.4795 | 737.0 | 571.6 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -13.77 | 73.66 | -23.08 | 115.08 | 0.4222 | -695.0 | -490.7 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -12.59 | 68.79 | -27.95 | 109.29 | 0.4867 | -703.0 | -600.9 | |
| 0.00 | 0.76 | 0.00 | 0.50 | -20.89 | 58.17 | -38.57 | 117.82 | 0.6609 | -640.0 | -581.0 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -15.08 | 58.88 | -37.86 | 109.42 | 0.6307 | -550.0 | -469.2 | |
| 0.00 | 0.42 | 0.00 | 0.31 | -23.43 | 52.38 | -44.35 | 118.84 | 0.7346 | -510.0 | -516.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
