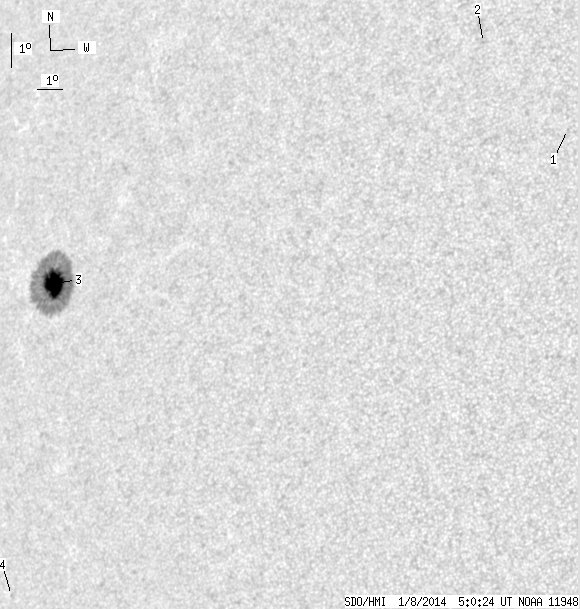

SDO HMI 2014-01-08 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.64 | 194.46 | 25.78 | 153.66 | 5.71 | 44.33 | -50.22 | 79.48 | 0.7801 | -982.3 | -234.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.42 | 0.00 | 0.25 | 9.45 | 64.03 | -30.52 | 66.23 | 0.5495 | -703.0 | -588.8 | |
| 0.00 | 1.10 | 0.00 | 0.69 | 12.22 | 60.71 | -33.84 | 63.99 | 0.6078 | -377.0 | -288.1 | |
| 32.64 | 191.92 | 25.78 | 151.90 | 5.72 | 44.23 | -50.32 | 79.51 | 0.7812 | -1078.0 | -238.7 | |
| 0.00 | 1.02 | 0.00 | 0.82 | -3.44 | 42.40 | -52.15 | 91.37 | 0.7907 | 599.0 | 506.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
