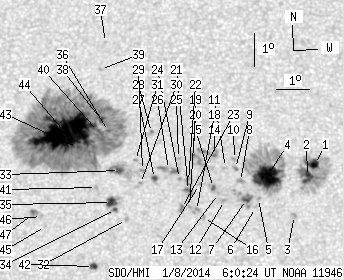

SDO HMI 2014-01-08 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 195.98 | 955.87 | 100.29 | 489.43 | 9.02 | 100.30 | 6.30 | 334.54 | 0.2523 | 318.3 | 99.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.69 | 76.58 | 2.95 | 39.66 | 8.60 | 105.89 | 11.88 | 316.44 | 0.2967 | -1055.0 | -437.1 | |
| 7.31 | -1.00 | 3.78 | -1.00 | 8.24 | 105.66 | 11.65 | 316.12 | 0.2897 | -1166.5 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 7.06 | 105.23 | 11.23 | 314.19 | 0.2707 | -795.0 | -743.6 | |
| 37.82 | 121.04 | 19.48 | 62.39 | 8.22 | 104.42 | 10.41 | 319.30 | 0.2755 | -1280.8 | -385.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.56 | 104.16 | 10.15 | 318.37 | 0.2642 | -955.0 | -797.2 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 7.29 | 104.06 | 10.05 | 317.95 | 0.2597 | -769.0 | -575.7 | |
| 2.21 | 18.53 | 1.13 | 9.50 | 7.52 | 103.79 | 9.79 | 319.32 | 0.2597 | -1206.3 | -800.5 | |
| 0.00 | 3.65 | 0.00 | 1.88 | 8.06 | 103.63 | 9.62 | 321.14 | 0.2649 | -1109.0 | -831.7 | |
| 0.00 | 2.21 | 0.00 | 1.14 | 8.46 | 103.48 | 9.48 | 322.47 | 0.2686 | -1002.0 | -789.1 | |
| 0.00 | 2.12 | 0.00 | 1.09 | 8.73 | 103.46 | 9.46 | 323.15 | 0.2720 | -808.0 | -576.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.48 | 103.18 | 9.18 | 323.42 | 0.2659 | -699.0 | -647.7 | |
| 0.00 | 2.46 | 0.00 | 1.26 | 7.49 | 103.13 | 9.12 | 321.21 | 0.2521 | -1023.0 | -813.1 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.70 | 102.95 | 8.95 | 322.27 | 0.2530 | -882.0 | -794.9 | |
| 0.34 | 9.69 | 0.17 | 4.98 | 8.84 | 102.86 | 8.85 | 325.19 | 0.2676 | -1068.2 | -665.8 | |
| 0.85 | 3.57 | 0.44 | 1.83 | 7.88 | 102.81 | 8.80 | 323.16 | 0.2539 | -1232.9 | -891.8 | |
| 0.00 | 2.21 | 0.00 | 1.13 | 6.97 | 102.49 | 8.48 | 321.92 | 0.2385 | -734.0 | -613.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.96 | 102.39 | 8.38 | 324.69 | 0.2509 | -1030.0 | -888.5 | |
| 0.00 | 2.97 | 0.00 | 1.52 | 7.18 | 102.28 | 8.28 | 323.14 | 0.2391 | -849.0 | -848.8 | |
| 0.51 | 11.98 | 0.26 | 6.15 | 8.87 | 102.23 | 8.22 | 327.20 | 0.2620 | -914.0 | -887.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 7.30 | 102.07 | 8.07 | 324.13 | 0.2387 | -1111.0 | -837.0 | |
| 1.53 | 5.01 | 0.78 | 2.56 | 7.78 | 102.05 | 8.05 | 325.36 | 0.2451 | -1152.1 | -882.8 | |
| 0.00 | 3.99 | 0.00 | 2.04 | 8.05 | 102.06 | 8.05 | 325.97 | 0.2490 | -495.0 | -852.7 | |
| 0.00 | 3.40 | 0.00 | 1.73 | 7.24 | 101.83 | 7.83 | 324.80 | 0.2354 | -1097.0 | -890.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.14 | 101.79 | 7.78 | 327.06 | 0.2477 | -1056.0 | -849.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 8.74 | 101.77 | 7.77 | 328.41 | 0.2562 | -868.0 | -644.2 | |
| 0.00 | 9.60 | 0.00 | 4.91 | 8.41 | 101.46 | 7.46 | 328.74 | 0.2486 | -502.0 | -706.7 | |
| 1.61 | 2.72 | 0.82 | 1.39 | 8.13 | 101.04 | 7.03 | 329.64 | 0.2409 | -991.6 | -747.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 9.52 | 100.98 | 6.97 | 332.57 | 0.2610 | -677.0 | -434.2 | |
| 0.00 | 2.38 | 0.00 | 1.21 | 8.37 | 100.68 | 6.68 | 331.41 | 0.2415 | -463.0 | -288.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 7.98 | 100.62 | 6.61 | 330.85 | 0.2351 | -929.0 | -667.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 8.67 | 100.48 | 6.47 | 332.73 | 0.2444 | -527.0 | -495.5 | |
| 0.00 | 2.12 | 0.00 | 1.08 | 6.89 | 100.18 | 6.17 | 330.12 | 0.2154 | 790.0 | 595.0 | |
| 2.89 | 18.44 | 1.47 | 9.40 | 8.37 | 99.99 | 5.99 | 333.94 | 0.2360 | 946.7 | 382.4 | |
| 0.85 | 2.38 | 0.43 | 1.21 | 7.19 | 99.86 | 5.85 | 332.10 | 0.2171 | 1070.2 | 691.9 | |
| 5.69 | 9.60 | 2.89 | 4.88 | 7.40 | 99.74 | 5.73 | 333.02 | 0.2194 | 1124.1 | 629.0 | |
| 0.59 | 607.15 | 0.30 | 310.09 | 9.54 | 99.68 | 5.68 | 337.11 | 0.2521 | 660.9 | 398.9 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 12.26 | 99.65 | 5.64 | 340.86 | 0.2945 | 763.0 | 598.3 | |
| 2.38 | -36.00 | 1.22 | -36.00 | 9.91 | 99.48 | 5.48 | 338.39 | 0.2564 | 904.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 11.43 | 99.48 | 5.47 | 340.43 | 0.2805 | 721.0 | 531.4 | |
| 0.85 | -36.00 | 0.43 | -36.00 | 9.54 | 99.38 | 5.38 | 338.20 | 0.2501 | 782.7 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 7.85 | 99.30 | 5.29 | 335.70 | 0.2230 | 740.0 | 573.7 | |
| 2.55 | 3.82 | 1.29 | 1.93 | 5.48 | 99.18 | 5.17 | 330.96 | 0.1858 | -1107.6 | -878.9 | |
| 0.93 | -36.00 | 0.48 | -36.00 | 9.06 | 98.75 | 4.74 | 339.89 | 0.2385 | 1105.5 | 999999 | |
| 121.38 | -36.00 | 61.97 | -36.00 | 9.51 | 98.39 | 4.39 | 341.88 | 0.2438 | 1390.5 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.39 | 6.67 | 97.76 | 3.76 | 340.34 | 0.1945 | 926.0 | 720.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 6.97 | 97.65 | 3.64 | 341.41 | 0.1987 | 691.0 | 609.7 | |
| 0.00 | 4.84 | 0.00 | 2.45 | 7.06 | 97.41 | 3.41 | 342.68 | 0.1989 | 1234.0 | 986.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
