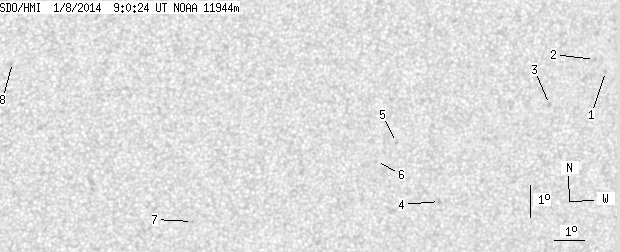

SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.44 | 0.00 | 4.69 | -21.90 | 112.71 | 20.34 | 224.66 | 0.4571 | 550.1 | 529.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.49 | -19.77 | 118.33 | 25.96 | 235.73 | 0.5005 | 696.0 | 599.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.41 | 117.89 | 25.52 | 235.96 | 0.4923 | 538.0 | 506.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.83 | 116.57 | 24.20 | 232.16 | 0.4871 | 733.0 | 631.8 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -23.93 | 113.29 | 20.92 | 223.21 | 0.4787 | 799.0 | 664.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.12 | 111.55 | 19.18 | 223.83 | 0.4413 | 721.0 | 628.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.73 | 110.96 | 18.59 | 221.98 | 0.4414 | 728.0 | 532.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -24.70 | 105.04 | 12.67 | 209.13 | 0.4110 | 726.0 | 601.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -19.82 | 98.88 | 6.51 | 201.17 | 0.2968 | -540.0 | -588.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
