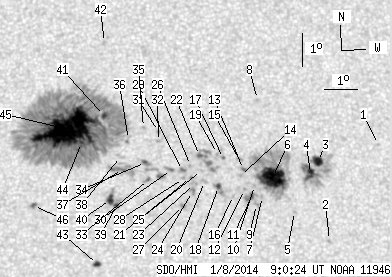

SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 170.49 | 923.39 | 87.56 | 474.31 | 9.07 | 100.18 | 7.81 | 329.53 | 0.2647 | 215.1 | 146.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 9.17 | 107.87 | 15.49 | 310.19 | 0.3468 | -758.0 | -580.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 6.25 | 106.25 | 13.88 | 306.03 | 0.2962 | -856.0 | -618.0 | |
| 6.63 | 52.96 | 3.46 | 27.61 | 8.62 | 105.96 | 13.59 | 312.66 | 0.3173 | -1054.7 | -468.2 | |
| 6.21 | -3.00 | 3.23 | -3.00 | 8.26 | 105.73 | 13.36 | 312.27 | 0.3105 | -1146.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.10 | 105.21 | 12.84 | 310.51 | 0.2913 | -786.0 | -588.0 | |
| 33.92 | 122.91 | 17.57 | 63.73 | 8.12 | 104.57 | 12.20 | 314.54 | 0.2948 | -1300.9 | -393.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 7.54 | 104.25 | 11.88 | 313.87 | 0.2842 | -864.0 | -838.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 10.47 | 104.20 | 11.82 | 320.68 | 0.3194 | -717.0 | -609.9 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 7.30 | 104.06 | 11.69 | 313.70 | 0.2791 | -907.0 | -735.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.87 | 104.01 | 11.64 | 315.26 | 0.2853 | -671.0 | -680.5 | |
| 1.28 | 6.04 | 0.66 | 3.11 | 7.54 | 103.91 | 11.54 | 314.67 | 0.2802 | -1206.5 | -981.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.75 | 103.71 | 11.33 | 315.72 | 0.2802 | -1052.0 | -907.2 | |
| 0.60 | 1.96 | 0.31 | 1.01 | 8.35 | 103.69 | 11.32 | 317.23 | 0.2874 | -1025.0 | -791.3 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 8.17 | 103.60 | 11.23 | 317.04 | 0.2840 | -931.0 | -736.7 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 8.65 | 103.58 | 11.21 | 318.22 | 0.2898 | -802.0 | -649.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.56 | 103.37 | 11.00 | 316.12 | 0.2740 | -905.0 | -721.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.67 | 103.10 | 10.72 | 319.54 | 0.2847 | -900.0 | -798.4 | |
| 1.62 | 7.65 | 0.83 | 3.94 | 7.83 | 102.92 | 10.55 | 317.98 | 0.2722 | -1173.2 | -915.0 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 8.82 | 102.92 | 10.55 | 320.35 | 0.2847 | -725.0 | -639.1 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 7.97 | 102.50 | 10.13 | 319.49 | 0.2693 | -852.0 | -753.7 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 8.30 | 102.42 | 10.05 | 320.51 | 0.2727 | -879.0 | -716.2 | |
| 0.94 | 17.60 | 0.48 | 9.07 | 8.76 | 102.37 | 10.00 | 321.69 | 0.2781 | -1017.1 | -861.9 | |
| 0.00 | 2.64 | 0.00 | 1.35 | 7.91 | 102.20 | 9.83 | 320.19 | 0.2652 | -943.0 | -819.8 | |
| 0.00 | 3.83 | 0.00 | 1.96 | 7.67 | 102.13 | 9.76 | 319.79 | 0.2614 | -977.0 | -900.4 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 8.09 | 102.08 | 9.71 | 320.96 | 0.2663 | -1040.0 | -937.3 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 8.45 | 102.09 | 9.72 | 321.78 | 0.2712 | -921.0 | -680.3 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 7.24 | 101.85 | 9.48 | 319.54 | 0.2529 | -1189.0 | -994.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 8.06 | 101.87 | 9.50 | 321.50 | 0.2636 | -1042.0 | -817.1 | |
| 0.43 | 2.38 | 0.22 | 1.22 | 8.30 | 101.84 | 9.47 | 322.14 | 0.2666 | -1196.4 | -1039.7 | |
| 0.43 | 3.32 | 0.22 | 1.70 | 8.32 | 101.51 | 9.14 | 323.19 | 0.2635 | -996.4 | -713.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.47 | 101.15 | 8.78 | 326.75 | 0.2758 | -832.0 | -581.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 9.17 | 101.14 | 8.77 | 326.15 | 0.2715 | -879.0 | -652.3 | |
| 0.43 | 2.81 | 0.22 | 1.44 | 8.02 | 100.81 | 8.44 | 324.65 | 0.2524 | -940.6 | -571.4 | |
| 1.02 | 14.28 | 0.52 | 7.32 | 8.53 | 100.73 | 8.36 | 326.05 | 0.2587 | -677.6 | -548.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.59 | 100.70 | 8.33 | 328.34 | 0.2734 | 590.0 | 471.2 | |
| 0.00 | 3.23 | 0.00 | 1.66 | 9.22 | 100.24 | 7.87 | 329.07 | 0.2641 | 490.0 | 362.1 | |
| 0.00 | 15.30 | 0.00 | 7.82 | 8.31 | 100.04 | 7.67 | 327.86 | 0.2492 | 1052.0 | 641.3 | |
| 0.00 | 2.98 | 0.00 | 1.52 | 8.70 | 99.99 | 7.61 | 328.86 | 0.2544 | 34.0 | 114.8 | |
| 1.36 | 13.94 | 0.69 | 7.10 | 7.23 | 99.84 | 7.46 | 326.06 | 0.2319 | 1029.4 | 621.2 | |
| 4.34 | -39.00 | 2.21 | -39.00 | 7.41 | 99.66 | 7.29 | 327.12 | 0.2328 | 1171.7 | 999999 | |
| 2.38 | 610.65 | 1.22 | 312.76 | 9.94 | 99.53 | 7.16 | 332.70 | 0.2689 | 927.2 | 424.3 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 12.17 | 99.59 | 7.22 | 335.97 | 0.3029 | 746.0 | 605.3 | |
| 2.13 | 3.49 | 1.07 | 1.76 | 5.46 | 99.24 | 6.87 | 323.55 | 0.2013 | -1068.3 | -859.7 | |
| 1.02 | -41.00 | 0.52 | -41.00 | 9.12 | 98.82 | 6.45 | 333.65 | 0.2511 | 1271.4 | 999999 | |
| 104.98 | -41.00 | 53.74 | -41.00 | 9.51 | 98.44 | 6.07 | 335.68 | 0.2543 | 1435.9 | 999999 | |
| 0.77 | 2.30 | 0.39 | 1.16 | 7.21 | 97.35 | 4.98 | 335.78 | 0.2110 | 1116.1 | 899.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
